MMSTACKER is a premier Chinese manufacturer specializing in high-performance telescopic loading spouts for bulk material handling. Also known as telescopic loading chutes or loading bellows, our equipment provides an eco-friendly and efficient solution for loading trucks, railcars, and vessels. Featuring integrated dust collection systems and full automation, our chutes offer a versatile loading capacity ranging from 100m³/h to 5800m³/h, ensuring dust-free operations for any industrial scale.
Discover our Telescopic Chute
By Machine Category
Telescopic Chute: Loading Chutes & Spouts
-
TH Cascade Chute - Dust-Free & Low Degradation
View More Send A RequestDesigned for fragile bulk materials, the TH Series uses an internal cascade cone system to limit material velocity. It minimizes product breakage and impact dust, making it ideal for grain, fertilizer, and coal stockpiling.
-
TL Telescopic Chute - Stockpiling & Ship Loading
View More Send A RequestThe TL Series is built for heavy-duty maritime operations, offering capacities up to 5,800 m³/h. Featuring reinforced bellows and high-speed retraction, it is the primary choice for large-scale vessel loading and port terminals.
-
TC Telescopic Chute - Truck, Railwagon and Ship Loading
View More Send A RequestThe TC series is designed for high throughput applications, with loading capacities ranging from 560 m³/h to 4000 m³/h. The telescopic chute length can reach 25m.
-
TE Telescopic Chute- Truck and Tank Loading
View More Send A RequestSpecialized for fine powders, the TA Series features a dual-path design that separates material flow from dust extraction. It ensures zero-emission loading for hazardous or aerated materials like cement, lime, and chemicals.
What Are The Types of Telescopic Loading Chute?
We provide two types of loading chute for sale, including free fall telescopic loading chute and telescopic cascade chute. For free fall chute, material drops vertically by gravity through the freel fall chute with minimal internal guidance until it reaches the receiving point (truck, ship hold, silo, wagon). For cascade chute, material flows down a series of internal inclined baffles or curved cascade plates, controlling velocity and direction before discharge. For modern bulk terminals and plants, cascade loading chutes are increasingly preferred.

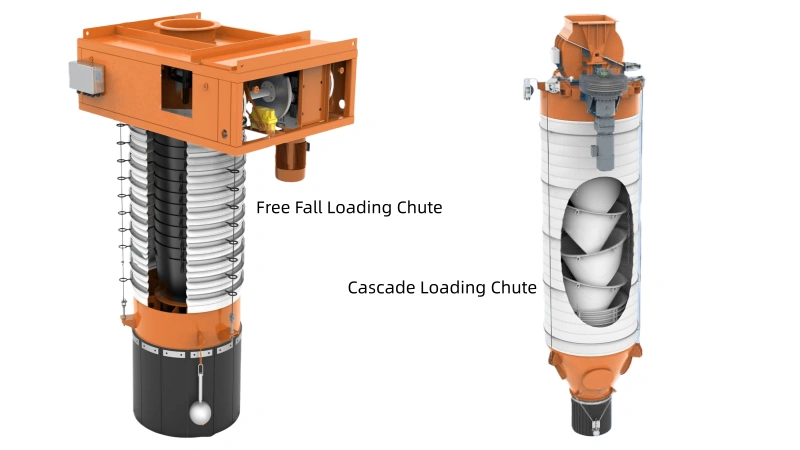

Free Fall Loading Chute and Cascade Chute
| Comparison of Free-fall Loading Chutes and Cascade Loading Chutes (Without Dust Collector) | ||
| Parameter | Free-Fall Loading Chute | Cascade Loading Chute |
| Material velocity | Very high | Controlled / low |
| Dust generation | High | Very low |
| Material degradation | High | Minimal |
| Wear rate | High | Low |
| Noise level | High | Low |
| System complexity | Simple | Moderate |
| Initial cost | Low | Higher |
| Environmental compliance | Poor | Excellent |
What Are The Applications of Telescopic Chute?
Our loading solutions offers a complete range of telescopic loading chute systems for the loading process. We also custom design any loading chute system to meet the most demanding loading application requirements, including corrosive materials and more.
Materials Included
- Aggregate, sand, frac sand.
- Coal, salt, iron ore, copper ore, bauxite.
- Fly ash, soda ash, calcium carbonate, gypsum.
- Earth, topsoil, biomass.
- Wheat, corn, soybeans, rapeseed.
- Wood chips, saw dust.
- Other materials, please contact us.
You can use our telescopic loading chutes to handle materials similar powdered or granular dry bulk substances.

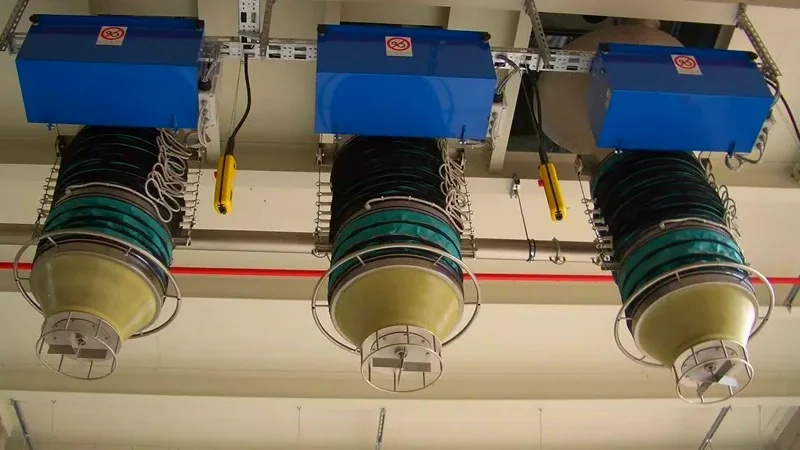

Tank Truck Loading
Achieve dust-free loading of fine powders (cement, fly ash, lime) into tank trucks. Our telescopic chutes feature a precision-sealing cone to ensure a clean, airtight connection with the vehicle inlet.

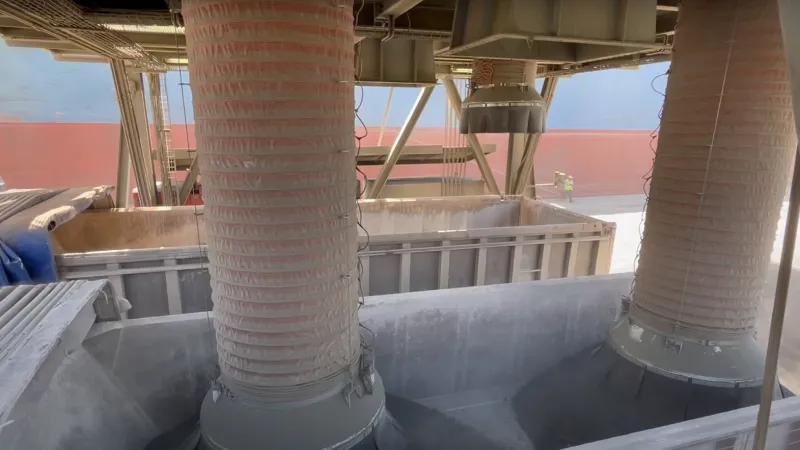

Top Open Truck Loading
Optimized for high-speed loading of coal, aggregates, sand, and grains into open-top trucks. The telescopic chute minimizes material spillage and controls dust emissions in open environments.

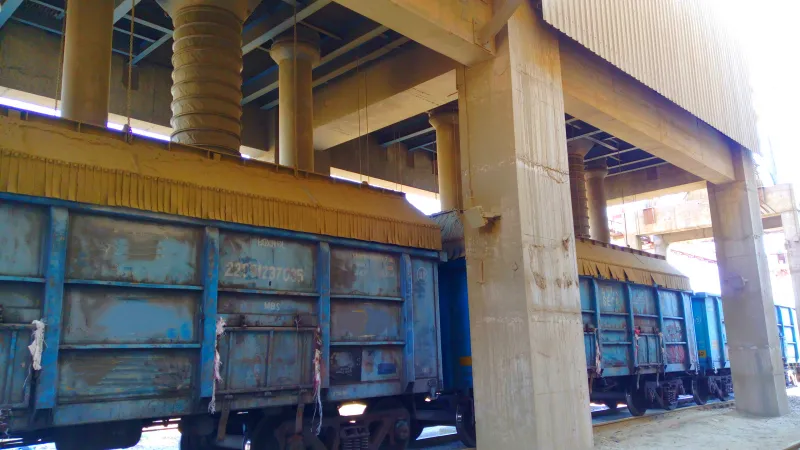

Rail Car Loading
Versatile telescopic loading chute solutions for railcar wagons, containers, and tanks. Designed to handle both granular solids and fine powders with adjustable stroke lengths to fit various railcar heights.

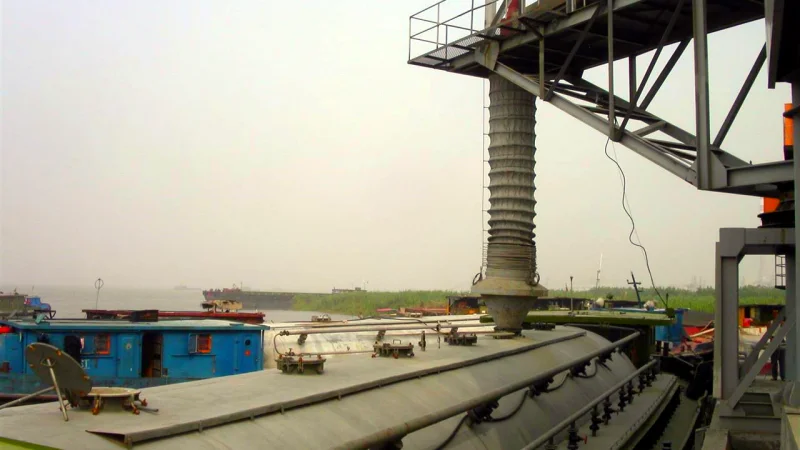

Tank Ship Loading
Heavy-duty chutes specifically for loading powdery materials like cement and fly ash into specialized tank vessels. Engineered for continuous operation in demanding maritime conditions.

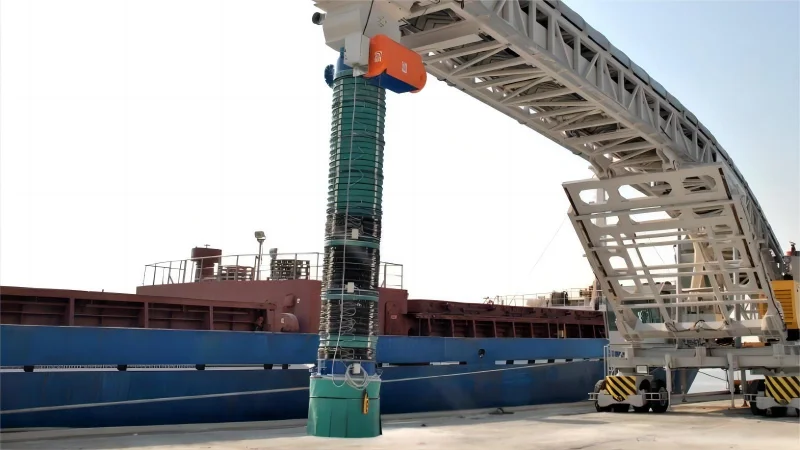

Bulk Ship Loading
High-capacity ship loading from barges to Capesize vessels. Our telescopic ship loading chutes can integrate with rotary trimmers to ensure even distribution and maximum hold utilization for large-scale bulk cargo.
Why to Invest Our Telescopic Spouts?
-
Dust-Free Loading Design
By integrating dust removal systems and dust-proof skirts, our telescopic chutes can effectively reduce or even prevent dust generated during loading.
-
Wide Range of Applications
Our telescopic chute can adapt to a wide range of materials. We have corresponding models to match different materials, even dry powder materials.
-
High Automatic Design
Due to the material level detection system, our telescopic chute can always maintain an appropriate distance from the loaded materials.
-
Wide Range of Throughout
Our telescopic loading spouts can loading materials with throughout ranging from 100m³/h to 5800m³/h.
