Bulk Material Ship Loading System

A ship loading system is a comprehensive device designed to efficiently transfer bulk materials from a storage facility to a ship. These systems are an integral part of ports and terminals that handle large volumes of bulk materials, ensuring safe, fast, and cost-effective loading operations. Here is a detailed overview of a ship loading system:

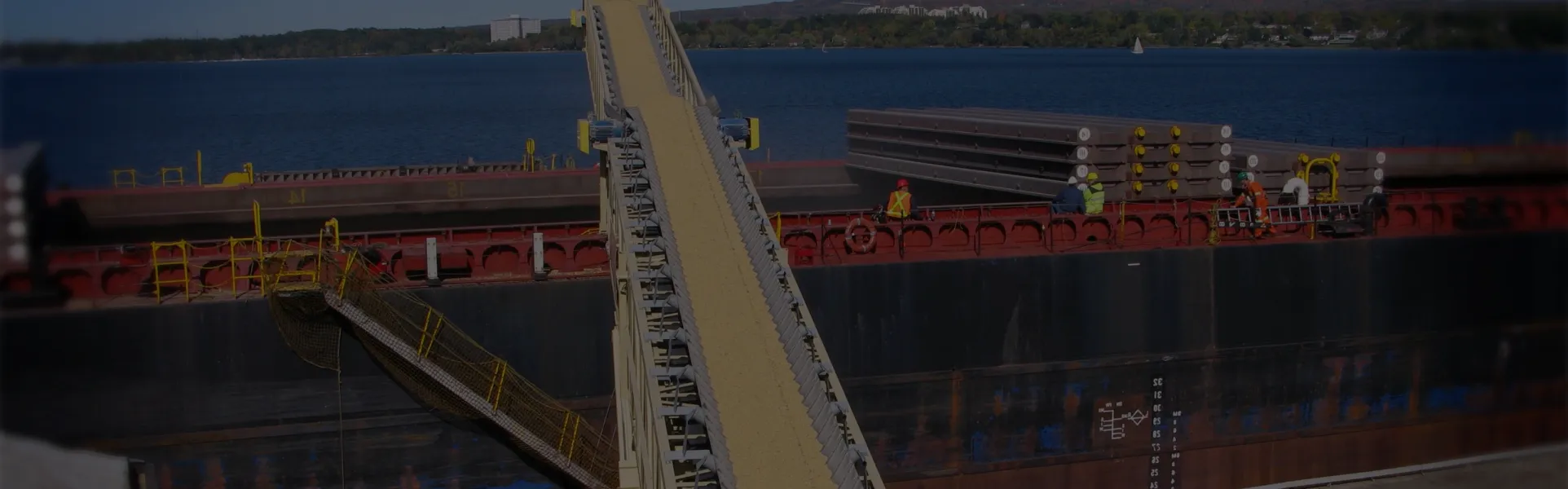

Radial telescopic ship loader

Components of a Ship Loading System

1. Conveyors

Belt Conveyors: Transport bulk materials from storage areas to the ship loader. They can be fixed or mobile and are often designed to handle high throughput rates.
Screw Conveyors: Used for materials that are particularly dusty or need to be enclosed during transport.
Chain Conveyors: Suitable for heavy materials and provides a powerful solution for large-volume transport.

2. Ship Loaders

Telescopic Ship Loaders: With a retractable boom conveyor, it is possible to reach various cabin of bulk carriers.
Radial Ship Loaders: Have a boom that can rotate, providing extensive coverage without moving the entire loader.
Cambered Boom Ship Loaders: Utilize a curved boom for better reach and flexibility.
Fixed and Mobile Ship Loaders: Fixed loaders are permanently installed, while mobile shiploaders can move along the dock to load different ship compartments.

3. Hoppers and Feeders:

Fixed Hopper: Used as temporary storage for bulk materials before they are loaded onto conveyors.
Mobile Hopper Feeder: It is used in stockyard to receive bulk materials from wheel loaders and then to feed material onto belt conveyors or ship loaders.
Surface Material Feeder: It can be fed by wheel loaders, trucks, and bulldozer. And it is used in feeding belt conveyors.

4. Bulk Material Reclaimer

Bridge Reclaimer: A bridge reclaimer operates on a track-mounted structure that spans the width of a stockpile. It moves along the length of the stockpile, reclaiming material with a bucket wheel or scraper that runs along a cross-bridge.
Bucket Wheel Reclaimer: Equipped with a rotating bucket wheel mounted on a boom. The bucket wheel rotates and scoops material from the stockpile, which is then conveyed for processing or loading.
Scraper Reclaimer: This type of reclaimer uses a series of scrapers attached to a chain that drags material towards the reclaiming conveyor.
Side Reclaimer: This reclaimer operates along the side of a stockpile, scooping material with a bucket or scraper that moves laterally along the pile's side.
Portal Reclaimer: Similar to a bridge reclaimer but includes a portal frame. It straddles a pile and reclaims material with a scraper or bucket wheel.
Stacker and Reclaimer: This is a hybrid machine that can both stack and reclaim materials. It features a bucket wheel and can perform both functions by pivoting its boom.
Cantilever Reclaimer: Operates with a long cantilever arm that moves across the surface of the stockpile. The reclaiming mechanism, like a bucket wheel or scraper, is mounted on this arm.

5. Control Systems

Automation Operation: Advanced control systems manage the operation of conveyors and ship loaders, optimizing loading rates and ensuring safety.
Remote Operation: Allows operators to control the loading process from a safe distance, reducing the need for manual intervention.

6. Dust Control Systems

Enclosed Conveyors: Prevent dust from escaping into the environment.
Water Sprays and Misting Systems: Suppress dust at transfer points and loading areas.
Dust Collector: Collect and filter dust particles from the air.

7. Safety Systems

Emergency Stop Mechanisms: Ensure the system can be quickly halted in case of an emergency.
Overload Sensors: Detect and prevent overloading of conveyors and ship loaders.
Fire Suppression Systems: Protect against fires in high-risk areas.

ship loading system with telescopic ship loader and fixed belt conveyor

Types of Materials Handled

Agricultural Products: Grains, seeds, and other agricultural commodities.
Minerals and Ores: Coal, iron ore, bauxite, and other mined materials.
Construction Materials: Sand, gravel, cement, and aggregates.
Fertilizers: Various types of bulk fertilizers.
Biomass: Wood chips, pellets, and other biomass fuels.

electric moving grasshopper conveyor for ship loading system

Benefits of an Efficient Ship Loading System

Increased Throughput: Efficient systems can handle high volumes of material quickly, reducing ship turnaround times.
Cost Reduction: Automation and optimized processes reduce labor costs and operational expenses.
Environmental Compliance: Dust control and containment systems minimize environmental impact and comply with regulations.
Safety: Enhanced safety features protect workers and equipment, reducing the risk of accidents.
Flexibility: Mobile and adjustable components provide flexibility to handle different ship sizes and types of materials.

A ship loading system is an essential infrastructure for ports and terminals dealing with bulk materials. By integrating advanced technologies and components like conveyors, ship loaders, hoppers, and control systems, these setups ensure efficient, safe, and environmentally friendly loading operations. The choice and design of a ship loading system depend on the specific requirements of the materials being handled and the operational needs of the port.
