CBSL Series All Wheel Travel Ship Loader

This all-wheel travel cambered boom ship loader uses a cambered boom conveyor to load ships and it can offer flexible solutions for every loading application with loading capacity up to 2000 t/h. It can accept a variety of bulk material feeding methods.

  • Product Introduce
  • Video
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

This full mobile chassis of CBSL all wheel travel mobile shiploader allow it to be move to any where in the dock of port. We will provide different design to anywhere the bulk vessel you will load. The loading capacity can be up to 2000t/h and the working length ranges from 30m to 55m. This cambered mobile ship loader can be fed by truck unloader, grasshopper conveyor and fixed belt conveyor.

Main Components of All Wheel Travel Cambered Shiploader

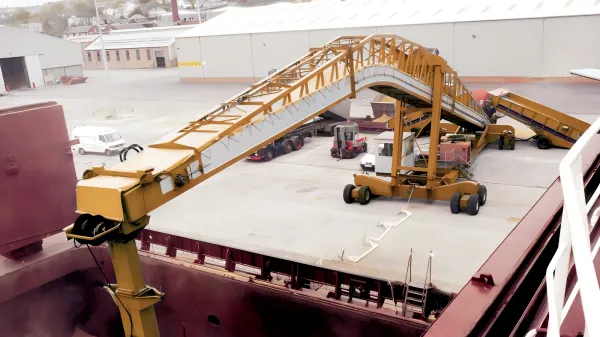

Cambered ship loader with single or double bulk reception feeder
Cambered ship loader with single or double bulk reception feeder

  1. Feed Boot
  2. Cambered design boom conveyor
  3. All wheel travel undercarriage
  4. Integrate or independent truck unloader (bulk reception feeder, optional)
  5. Telescopic loading chute (optional)
  6. Dust extraction filtering system (optional)
  7. Integrate power or outer power source (optional)
  8. Control Cabin, Control Panel, Remote Control (optional)

Feeding Methods of All Wheel Travel Cambered Shiploader

The differing quayside design, production rates, bulk materials and vessel sizes mean we keep developing our extensive range of mobile ship loading systems.

Feeding Methods of Cambered Boom Ship Loader
Feeding Methods of Cambered Boom Ship Loader

There are several cambered ship loading methods, and they are:

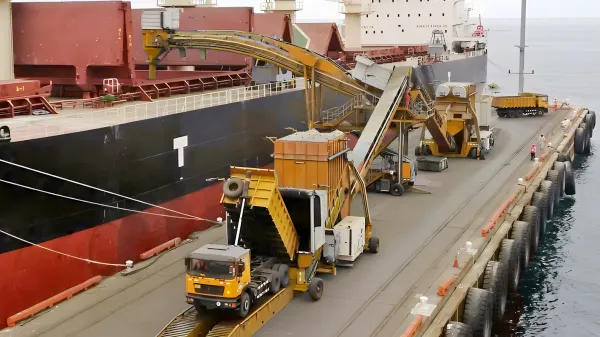

  1. From Truck to Ship: This ship loader receives bulk materials from single or double truck unloader.
  2. From Wheel Loader to Ship: This ship loader receives bulk materials from mobile hopper feeder.

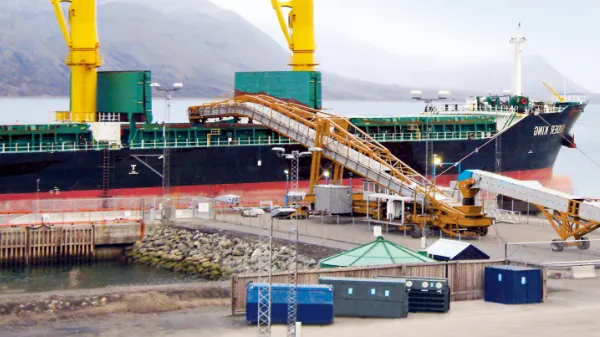

  3. From Link to Ship: This ship loader receive bulk materials from portable grasshopper conveyors.

Moving Methods of All Wheel Travel Cambered Shiploader

Range of unercarriage with hydraulic drive tires can allow for quick hatch change times and on site movement.

Moving Methods of All Wheel Travel Cambered Shiploader
CBSL All Wheel Travel Shiploader Moving Modes

This cambered ship loader has 4 moving modes, and they are:

  1. In-line travel: Easily travel to and from the berthing line.
  2. Carousel travel mode: Enable full 360° rotary movement of the machine.
  3. Parallel travel: Fast hatch to hatch transition.
  4. Crab travel mode: Enabling a narrower footprint of machine on jetty/quayside.

Video

Play Now

Advantages & Highlights

  • Optional Cambere Boom Conveyor

    We have serveral length of boom conveyor for choosing to meet the different sizes of ships from barges to Handymax.

  • Self-propell Travelling Unit

    The heavy duty steel undercarriage is mounted hydraulic wheels for moveing by using integrated power or or shore power.

  • Loading Capacity Reaches 2000t/h

    If you need high loading efficiency, our CBSL Series Ship Loading Conveyor also can meet your requirement.

  • Excellent Dust Protection Measures

    It can integrate dust collector and telescopic loading chute to reduce dust generated at material transfer points and discharge points.

Application & Gallerys

The CBSL Series All Wheel Travel Mobile Ship Loaders are a cost-effective and fast track solution with complete flexibility and can be combined with the MNSTACKER's other equipment. You can use this mobile ship loader load dry bulk materials.

  • Aggregate & Sand
  • Mineral Ore (sulphur, coal, iron ore, copper ore, ore concentrate, bauxite)
  • Fertilizer
  • Grains (corn, rapeseed, soybeans, wheat)
  • Cement clinker
  • Others
  • mobile shiploader with cambered boom loading conveyor
  • mobile shiploader with cambered boom loading conveyor
  • mobile shiploader with cambered boom loading conveyor

Technical Parameters

Model Length (m) Outreach (m) Free-Board (m) Beam (m)
CBSL30 30 13 8.4 20
CBSL35 35 15 9.7 25
CBSL40 40 17.5 11.2 30
CBSL45 45 20 12.3 32
CBSL50 50 22.5 13.7 35
CBSL55 55 25 14.8 40
CBSL60 60 27.5 15.8 40
Model Length (ft) Outreach (ft) Free-Board (ft) Beam (ft)
CBSL30 98.4 42.64 27.55 65.6
CBSL35 114.8 49.2 31.82 82
CBSL40 131.2 57.4 36.74 98.4
CBSL45 147.6 65.6 40.34 104.96
CBSL50 164 73.8 44.94 114.8
CBSL55 180.4 82 48.54 131.2
CBSL60 196.8 90.2 51.82 131.2
Read More Data
