Bucket Elevator Belt

The bucket elevator belt is designed to carry buckets that scoop up, lift, and then discharge materials at the top of the elevator. We provide PVC bucket elevator belt, EP/NN rubber bucket elevator belt and steel cord elevator belt.

Bucket Elevator Belt Catalog

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

Bucket elevator belts are essential for the efficient and safe vertical transportation of bulk materials in various industries. Choosing the right belt type and maintaining it properly can significantly enhance the performance and lifespan of a bucket elevator system.

Types of Bucket Elevator Belts

  1. EP/NN Rubber Belt: Typically made from polyester or nylon fabrics, offering a balance between strength, flexibility, and cost.
  2. PVC/PVG Solid Woven Belt: Both PVC and PVG belts have a solid woven fabric core that provides tensile strength and flexibility.

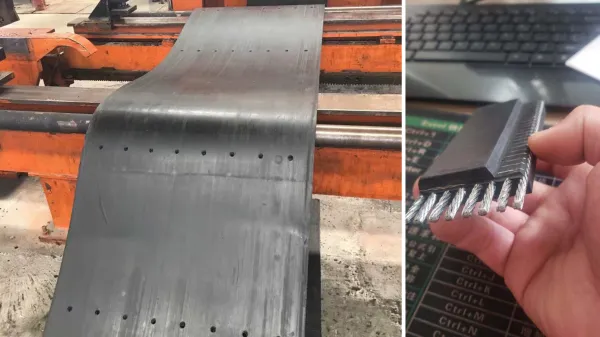

  3. Steel Cord Belt: Incorporate steel cords for extra tensile strength, ideal for very high loads and long lifts.

Construction of Bucket Elevator Belts

  1. Carcass: The core of the belt, typically made from high-strength synthetic fabrics like polyester or nylon, providing the necessary tensile strength and flexibility.
  2. Covers: The outer layers of the belt, usually made from rubber or other synthetic materials, protect the carcass and provide resistance to wear, heat, and chemicals.
  3. Bucket Attachments: Holes or slots are incorporated into the belt to securely attach the buckets. These attachments are critical for ensuring the buckets stay in place during operation.

Advantages & Highlights

  • High Tensile Strength

    The belts are designed to withstand the high tension required to lift materials vertically.

  • Durability

    Made from materials that resist wear, abrasion, and impacts, ensuring a long service life even under heavy-duty conditions.

  • Flexibility

    Flexible enough to accommodate the bending around pulleys and the dynamic movements of the buckets.

  • Heat and Chemical Resistance

    Specially formulated belts can resist high temperatures and exposure to various chemicals, making them suitable for a wide range of materials.

  • Low Elongation

    Minimal stretching under load ensures stable and efficient operation.

  • Safety

    Fire-resistant and antistatic properties can be incorporated for specific applications, especially in industries like mining and grain handling.

Application & Gallerys

A bucket elevator belt is a critical component of a bucket elevator system, which is used to vertically lift bulk materials in various industrial applications.

  • Agriculture: Lifting grains, seeds, and other agricultural products.
  • Mining: Elevating ores, coal, and other mined materials.
  • Cement and Building Materials: Transporting cement, sand, gravel, and other construction materials.
  • Food Processing: Handling food products like sugar, flour, and bulk food items.
  • Chemical Industry: Conveying raw materials and finished products in chemical processing plants.
  • Power Plants: Lifting coal and other fuel sources.

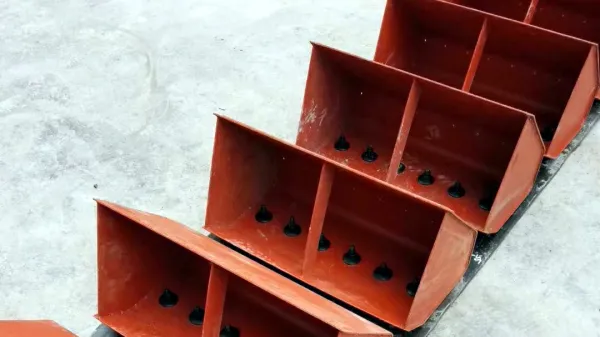

  • bucket elevator belt

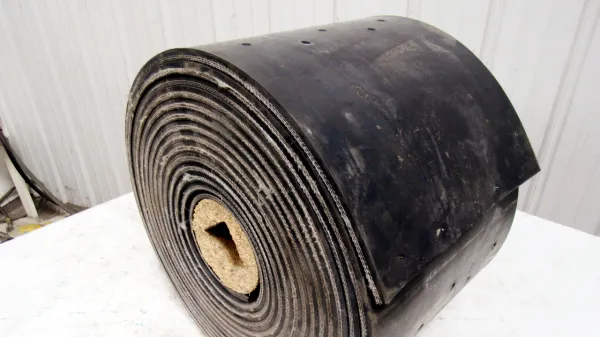

  • bucket elevator belt

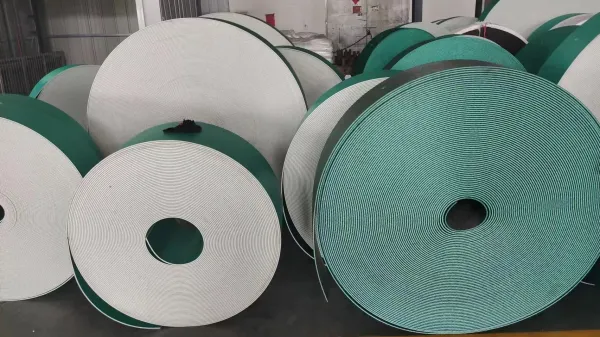

  • bucket elevator belt

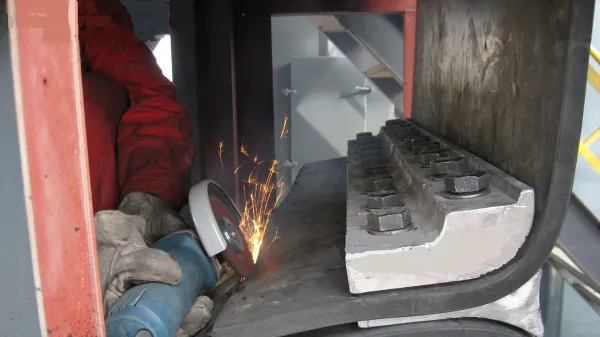

  • bucket elevator belt

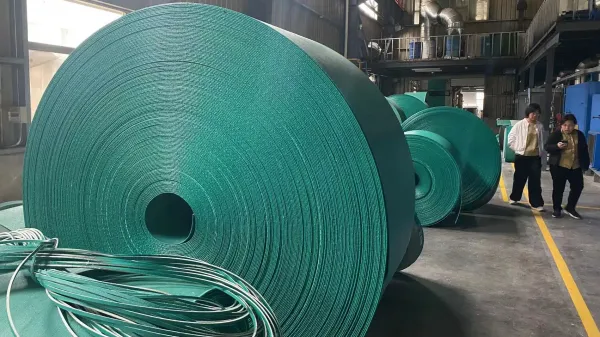

  • bucket elevator belt

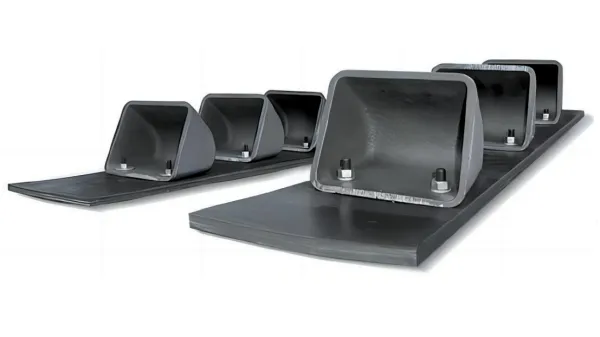

  • bucket elevator belt

Technical Parameters

PVC and PVG Bucket Elevator Belt
Type Color Tensile Strength
(N/mm)		 Ambient Temperature (ºC) Elongation at rate (%) environmental protection flame resistance conductivity
PVC480 Green/Black ≥480 -15~+85 0.7 operation operation √
PVC680 Green/Black ≥680 -15~+85 0.8 operation operation √
PVC880 Green/Black ≥880 -15~+85 0.9 operation operation √
PVC1080 Green/Black ≥1080 -15~+85 0.9 operation operation √
PVG480 White ≥480 -15~+85 0.7 √ operation operation
PVG680 White ≥680 -15~+85 0.8 √ operation operation
PVG880 White ≥880 -15~+85 0.9 √ operation operation
Steel Cord Bucket Elevator Belt
Belt Type Minimum Breaking
Strength Per Width Of Belt
(N/Mm)		 Maximum Cord
Diameter (Mm)		 Minimum Breaking
Strength Of Cord (KN)		 Cord Pitch
(Mm)		 Minimum
Thickness Of
Covers (Mm)
ST630 630 3.0 7.0 10.0 4.0
ST800 800 3.5 8.9 10.0 4.0
ST1000 1000 4.0 12.9 12.0 4.0
ST1250 1250 4.5 16.1 12.0 4.0
ST1400 1400 5.0 20.6 14.0 4.0
ST1600 1600 5.0 20.6 12.0 4.0
ST1800 1800 5.6 25.5 13.5 4.0
ST2000 2000 6.0 25.6 12.0 4.0
ST2250 2250 5.6 26.2 11.0 4.0
ST2500 2500 7.2 40.0 15.0 5.0
ST2800 2800 7.2 39.6 13.5 5.0
ST3450 3150 8.1 50.5 15.0 5.5
ST3500 3500 8.6 56.0 15.0 6.0
ST4000 4000 8.9 63.5 15.0 6.5
ST4500 4500 9.7 76.3 16.0 7.0
ST5000 5000 10.9 91.0 17.0 7.5
ST5400 5400 11.3 98.2 17.0 8.0
ST6300 6300 12.8 130.4 19.5 10.0
ST7000 7000 13.5 142.4 19.5 10.0
ST7500 7500 15.0 166.7 21.0 10.0
EP/NN Bucket Elevator Belt
Fabric Type Fabric Warp Fabric Weft Fabric Ply Thickness (Mm/P) Ply Layers Top Cover Bottom Cover Width (mm) Length (m)
EP POLYESTER POLYESTER EP100 1 2-6 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP125 1 2-6 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP150 1.1 2-6 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP200 1.2 2-6 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP250 1.4 2-6 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP300 1.6 2-10 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP350 1.8 2-10 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP400 2 2-10 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP450 2.1 2-10 2.0-8.0 0-4.5 300-2300 ≤300
EP POLYESTER POLYESTER EP500 2.2 2-10 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN100 1 2-6 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN125 1 2-6 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN150 1.1 2-6 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN200 1.2 2-6 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN250 1.4 2-6 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN300 1.6 2-10 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN350 1.8 2-10 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN400 2 2-10 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN450 2.1 2-10 2.0-8.0 0-4.5 300-2300 ≤300
NN NYLON NYLON NN500 2.2 2-10 2.0-8.0 0-4.5 300-2300 ≤300
Read More Data
