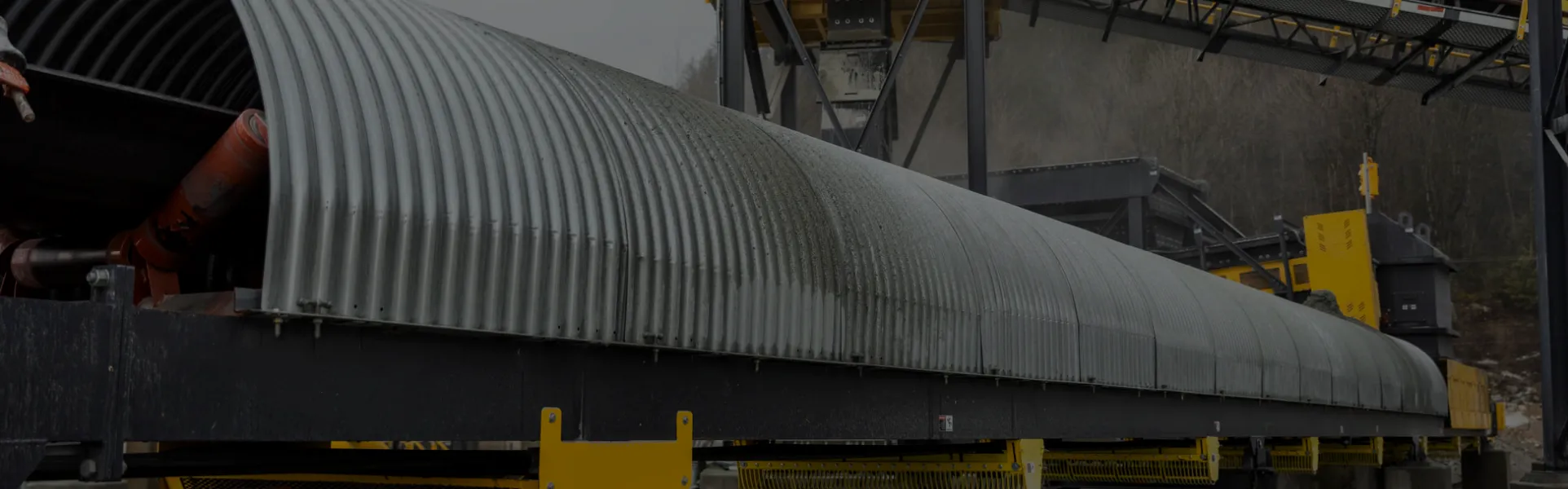

Hinged Conveyor Covers for Belt Conveyors
Hinged conveyor covers are protective enclosures installed over conveyor belts that allow easy access for inspection, maintenance, and belt cleaning through a hinged design. These are especially useful in bulk material handling industries where weather protection and safety are critical, such as mining, cement, power plants, and fertilizer facilities.
Key Features of Hinged Conveyor Covers
| Feature | Description |
| Hinged design | Facilitates quick opening and closing, often with latches or retaining bars, enabling access to belts, idlers, or conveyed materials without removing the cover. |
| Quick access | Allows maintenance crews to open sections of the cover for inspection, without dismantling entire panels. |
| Weather protection | Shields materials and conveyor components from rain, dust, wind, and sunlight. |
| Safety improvement | Reduces risk of contact with moving parts and lowers noise levels, enhancing workplace safety. |
| Modular construction | Usually supplied in standard lengths (e.g., 1 m or 2 m), easy to install and replace. |
| Locking mechanisms | Some come with latches or fasteners to prevent accidental opening. |
Materials Used
They are typically made from materials like galvanized steel, stainless steel, aluminum, fiberglass, or painted steel, chosen for durability and resistance to harsh environments.
Belt conveyor cover for aggregate conveyor system
| Material | Description |
| Galvanized steel | Most common, corrosion-resistant, durable for outdoor use. |
| Aluminum | Lightweight, corrosion-resistant, but costlier. |
| Stainless steel (SS304/SS316) | For corrosive environments (e.g., fertilizer, chemical plants). |
| Fiberglass Reinforced Plastic (FRP) | Non-metallic, used in highly corrosive or chemical-heavy industries. |
Typical Sizes
| Parameter | Range / Option |
| Cover length | 1000 mm / 2000 mm |
| Belt width supported | 400 mm – 2400 mm |
| Opening angle | 60° – 90° |
| Thickness (steel) | 0.6 mm – 1.2 mm |
Common Types of Hinged Covers
- Half-round hinged covers (clamshell) – Opens partially on one side.
- Full enclosure with hinged top – Top panel opens upward, side panels remain fixed.
- Flat-top covers with side hinge – Preferred where vertical clearance is limited.
- Transparent inspection panels – Some include windows for visual inspection.
Applications
Applications span industries like mining, ports, steel, power, food processing, and recycling, where covers protect materials and ensure compliance with environmental standards. For outdoor systems, hinged covers often feature heavy-gauge materials or coatings to withstand weather, with designs like hip-roof covers to shed snow or rain. We provide conveyor covers for stacker conveyor and mobile ship loader for bulk material handling.
Conveyor belt systems in:
- Coal and cement plants
- Aggregate quarries
- Power plants
- Fertilizer and chemical industries
- Port conveyor systems
Hinged Cover from Us
Our hinged conveyor covers compatible with:
- All belt widths (customizable)
- Fixed or mobile conveyor systems
- Available in galvanized steel, SS304/316, and aluminum
- Optional side inspection ports and locking latches
Would you like:
- A quote for specific belt width and length?
- A 3D drawing or installation diagram?
- A comparison of fixed vs. hinged vs. transparent covers?
Let me know your belt width, environmental conditions, and material handled, and I’ll help select the most suitable hinged cover option.
