What are Telescopic Loading Chutes?

Telescopic loading chutes, also known as telescopic loading spouts, are specialized equipment used for the efficient and dust-free loading of bulk materials into trucks, railcar, barges, ships, or storage bins. They consist of a series of concentric, retractable tubes or sections that can extend and retract to adjust to different loading heights and positions. Here are the key features and benefits of telescopic loading chutes:

Telescopic Loading Chutes for Ship Loading

Main Components of Telescopic Chute

Frame:
The frame provides structural support for the telescopic chute and serves as the base for mounting other components. It's typically made of sturdy materials like steel to withstand the weight of the chute and the materials being handled.
Telescopic Sections:
These are the sections of the chute that can extend or retract. They are usually nested within each other and can be extended or retracted either manually or through automated mechanisms like hydraulic cylinders or screw mechanisms.
Chute Walls:
The walls of the chute guide the material being transferred, ensuring it flows smoothly from one end to the other without spillage or blockages. These walls are often made of durable materials like stainless steel or high-density plastics.
Liners:
Liners are sometimes added to the inside of the chute walls to reduce friction and wear, especially when handling abrasive materials. They can be made of materials like UHMW (Ultra-High Molecular Weight) polyethylene or ceramic tiles.
Seals:
Seals are used to prevent material leakage between telescopic sections when the chute is extended. They ensure that the material remains contained within the chute during transfer.
Control System:
The control system regulates the extension and retraction of the telescopic chute. It can include manual controls for basic operations or more advanced automated controls, such as PLCs (Programmable Logic Controllers) or sensors, for precise positioning and monitoring.
Drive Mechanism:
In automated telescopic chutes, a drive mechanism is used to power the extension and retraction of the chute. This could be a hydraulic system, pneumatic system, electric motor, or a combination depending on the application requirements.
Safety Features:
Safety features such as emergency stop buttons, guards, and sensors are often incorporated into telescopic chutes to prevent accidents and ensure safe operation.

Key Features of Telescopic Chute

Adjustable Length: Telescopic chutes can extend and retract, allowing for flexibility in reaching various loading points and accommodating different vehicle heights and storage container levels.
Dust Control: Many telescopic loading chutes are equipped with integrated dust suppression systems, such as dust filters or containment skirts, to minimize airborne dust during the loading process, improving environmental safety and working conditions.
Flow Control: They often include flow control features to regulate the discharge rate of the bulk material, ensuring a steady and controlled loading process.
Material Compatibility: Telescopic chutes are designed to handle a wide range of bulk materials, including grains, minerals, cement, coal, and other aggregates.
Robust Construction: Made from durable materials like steel or high-strength alloys, these chutes can withstand the abrasive nature of many bulk materials and harsh operating conditions.

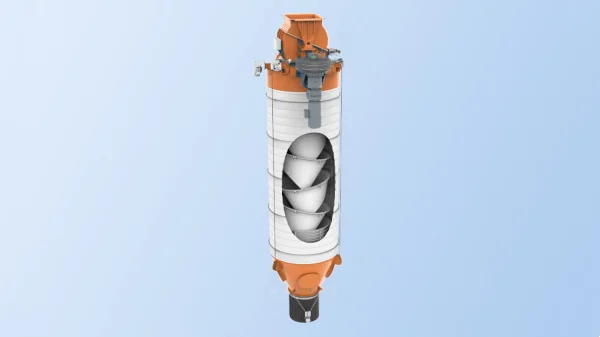

telescopic chute for radial shiploader

Benefits of Telescopic Chute

Efficiency: Telescopic loading chutes streamline the loading process, reducing the time required to load vehicles or storage containers.
Versatility: Their adjustable design makes them suitable for various loading applications, from trucks and railcar to ships and silos.
Safety: By controlling dust and minimizing spillage, telescopic chutes enhance workplace safety and environmental compliance.
Cost Savings: Improved loading efficiency and reduced material loss translate into cost savings for operations.
Reduced Environmental Impact: Effective dust suppression systems help minimize the environmental impact of bulk material handling operations.

Typical Applications of Telescopic Chute

Agriculture: Loading grain, seeds, and fertilizers into trucks, rail-cars, and storage bins.
Mining: Handling coal, ores, and other mined materials during transport and storage operations.
Construction: Loading cement, sand, gravel, and other construction materials into transport vehicles or storage facilities.
Manufacturing: Transporting raw materials or finished products in various manufacturing industries.

How Telescopic Chute Work

Positioning: The chute is positioned above the receiving container (e.g., truck, railcar, or ship hold).
Extension: The telescopic sections extend downwards until they reach the desired loading height or contact the surface of the material being loaded.
Material Flow: Bulk material flows through the chute and is directed into the receiving container. Flow control mechanisms ensure a steady and controlled discharge.
Dust Suppression: Dust control systems, such as filter units or containment skirts, capture and suppress dust generated during loading.
Retraction: Once loading is complete, the chute retracts back to its original position, ready for the next loading operation.

Telescopic loading chutes are essential for efficient, safe, and environmentally friendly bulk material handling. They offer versatility and reliability across various industries, ensuring smooth loading processes and helping to maintain operational productivity.
