Motorized Pulley & Drum Motor

A motorized pulley is a type of conveyor pulley that includes an integrated electric motor, gearbox, and other components within the pulley shell. We offer quarry duty and mine duty motorized pulley for you.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

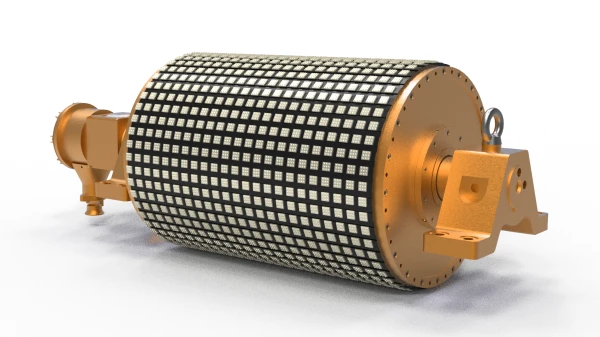

The motorized pulley contains an electric motor and gearbox within the pulley shell. This integration simplifies the design and installation of conveyor systems, as there is no need for an external motor and gearbox. Motorized pulleys offer a modern and efficient solution for belt conveyor drive systems used in heavy duty bulk material handling applications.

Advantages & Highlights

  • Highly Integrated

    Our motorized pulley contains an electric motor and gearbox within the pulley shell.

  • Compact Design

    Motorized pulleys offer a compact and streamlined design, reducing the overall footprint of the conveyor system.

  • High Torque and Power

    The motor and gearbox combination are selected to match the loading bearing, belt tension, and desired belt speed.

  • Low Maintenance

    The sealed design and integrated components contribute to a lower maintenance requirement for motorized pulleys.

  • Various of Sizes

    Our motorized pulleys come in various sizes and configurations to accommodate different conveyor belt widths, loads, and application requirements.

  • Variable Speed Control

    Our motorized pulleys feature variable speed control, allowing operators to adjust the conveyor belt speed.

Application & Gallerys

Motorized pulleys offer a modern and efficient solution for belt conveyor drive systems, providing benefits in terms of space savings, energy efficiency, and reduced maintenance. Our motorized pulleys are used in a wide range of industries and applications, including mining, quarrying, construction, port, power, etc. Our conveyor pulleys are suitable for conveying various materials, including bulk solids, aggregates, ores, coal, grains, and other bulk materials.

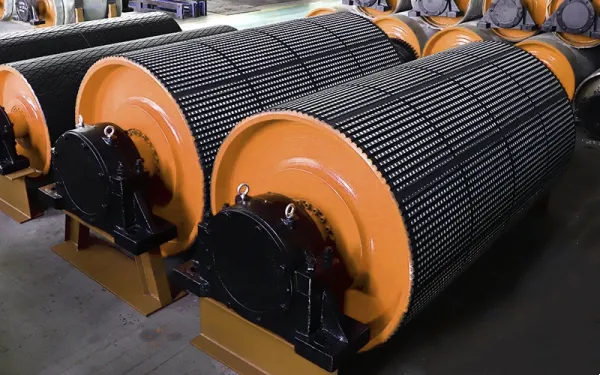

  • drum motorized pulley for belt conveyor

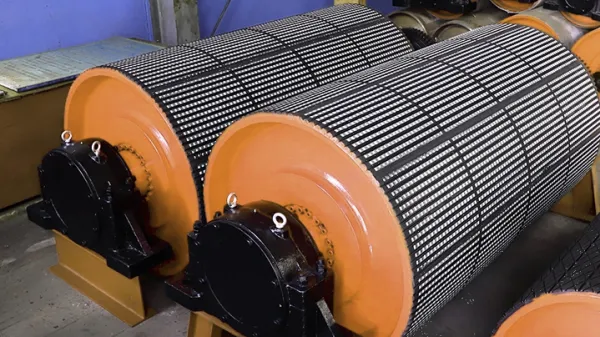

  • drum motorized pulley for belt conveyor

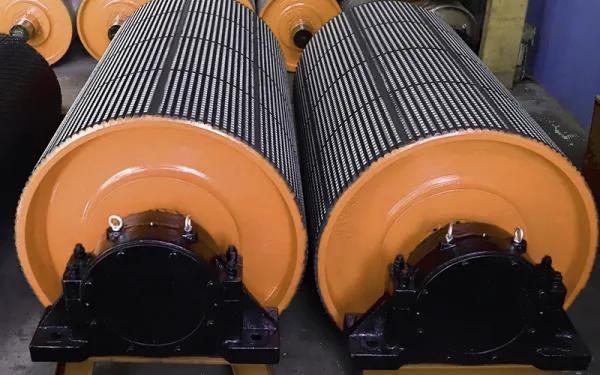

  • drum motorized pulley for belt conveyor

Technical Parameters

Driving Power 1.5~630KW(Customizable)
Velocity 0.35~4.0(m/s)(Customizable)
Belt Width 400mm-2600mm(Customizable)
Drum Diameter 250mm-1800mm(Customizable)
Type conveyor Belt Conveyor, Mobile Conveyor, Stacking Conveyor, Mobile Shiploader, etc.
Rubber Lagging Surface Smooth steel surface, rubber faced, rubber lagged, ceramic lagged, diamond rubber covered.
Lagging Thickness 10, 12, 15mm
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Application Used in mining, coal mine, steel industry, cement industry, aggregate industry and so on.
Service life More than 30,000 hours.
