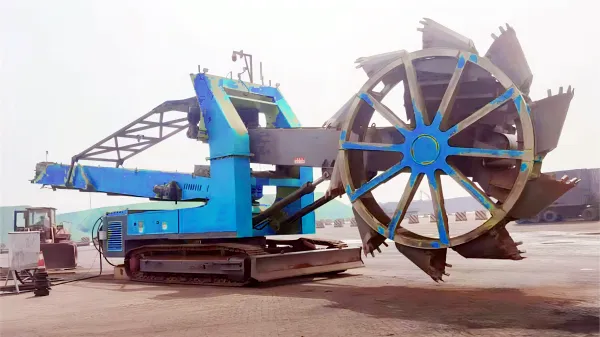

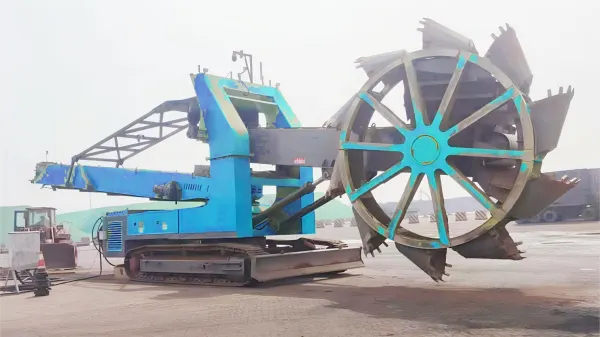

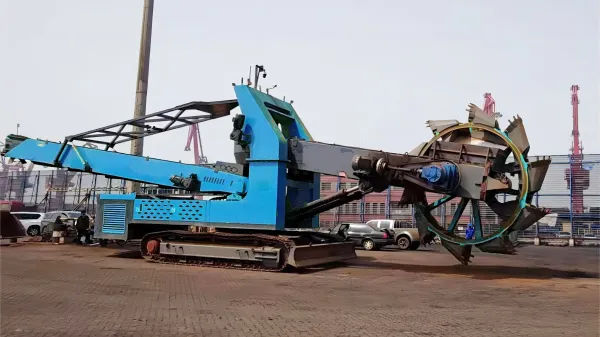

The BWR500 tracked mobile bucket wheel reclaimer is a small mobile bucket wheel excavator. Our BWR500 is a continuous bucket wheel excavating, reclaiming and stacking machine, which is particularly suitable for replacing loaders and excavators for truck and train loading operations. It is even able to be used in feeding belt conveyors. The bucket wheel diameter is about 5.1m. The bucket wheel reclaiming capacity is up to 500m³/h. The bucket wheel unit cutting force is 40Kg/cm.
BWR500 Mobile Bucket Wheel Reclaimer
BWR500: The reclaiming volume is 500m³/h, the reclaiming height is 7.5m, and the bucket cutting force is 40Kg/cm. It can be used as a mobile bucket wheel reclaimer or bucket wheel excavator in the material yard to load trucks or feed belt conveyors.
- Product Introduce
- Video
- Advantages
- Application & Gallery
- Technical Parameters
Introduction
Video
Advantages & Highlights
-
Easy to Maintain
Adopting standardized and serialized design, the manufacturing process is streamlined, and the equipment is more conducive to maintenance and repair.
-
Easy to Move
Due to be mounted on tracks, this mobile bucket wheel reclaimer can move around the stockyard of port, power plant, quarry, mining plant, etc.
-
Easy to Operate
High degree of electrical automation, realizing automatic control and remote control. One or two people can control this machine. Even none people is OK.
-
Save Running Cost
There are few wearing parts for daily maintenance. The main wearing parts include excavating bucket wheels, bucket teeth, conveyor idlers, etc.

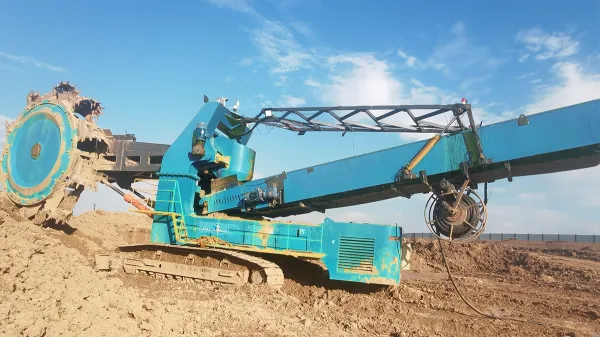

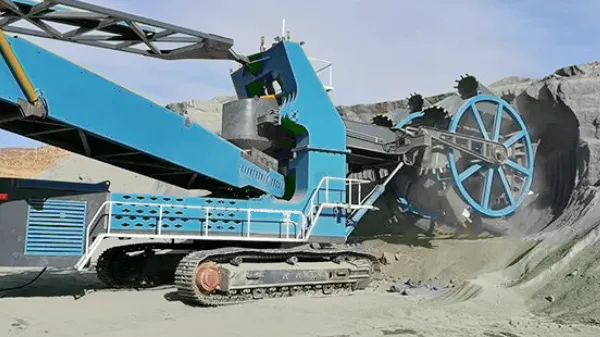

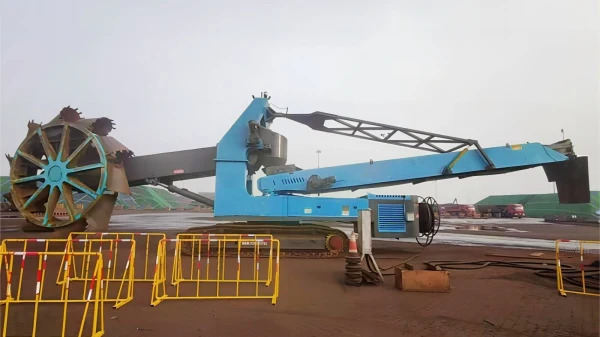

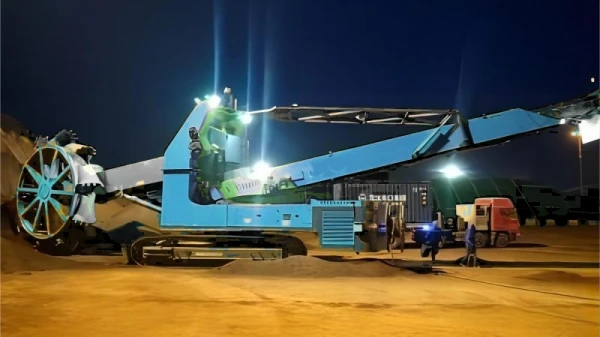

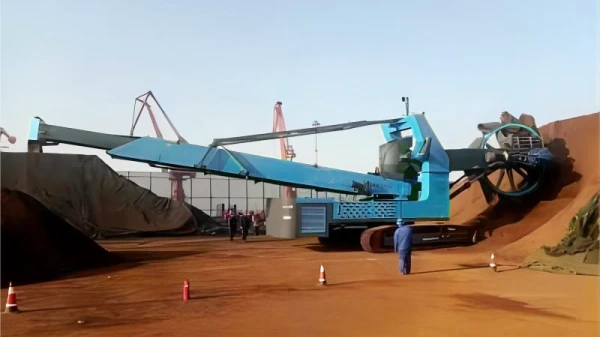

Application & Gallerys
Our BWR500 mobile bucket wheel reclaimer can operate continuously. It is suitable for reclaiming of loose bulk materials in storage yards. It is widely used in industries like port, aggregate, mining, energy, etc. The common two applications.
- Reclaim bulk materials to load trucks.
- Reclaim bulk materials to load railcar wagon.
- Reclaim bulk materials to feed a belt conveyor.
Technical Parameters
| BWR500 Bulk Wheel Reclaimer and Excavator | |
| Item | Specification |
| Overall Dimension | 20597x4200x6140mm |
| Track Dimension (LxW) | 6000x600 |
| Capacity | 500m³/h |
| Bucket Volume | 0.09m³ |
| Bucket Wheel Diameter | 5.1m |
| Bucket Nos | 22 |
| Unit Cutting Force | 40kg/cm |
| Bucket Wheel Speed | 5 r/min |
| Material Density | 2.35t/m³（iron ore） |
| Discharge Boom Rotation Angle, Relative to the Reclaiming Boom | ±90° |
| Reclaiming Boom Rotation Angle | 360° |
| Conveyor Belt Width | 1m |
| Conveyor Belt Speed | 2m/s |
| Ground Pressure | 125kpa |
| Smallest Turning Radius | 7.5m |
| Maximum Crawler Walking Speed | 8.5m/min |
| Drive Mode | Hydraulic drive |
| Power Source | Diesel or electric drive |
| Bucket Wheel Driving Power | 75kw |
| Bucket Wheel Boom Conveyor Drive | 22kw |
| Discharge Telescopic Conveyor Belt Drive | 30kw |
| Bucket Wheel Boom Slewing Drive | 5.5kw x2 |
| Telescopic Boom Slewing Drive | 3kw x2 |
| Crawler Walking + Cylinder Lifting | 22kw |
| Total Power | 166kw |
| Diesel Engine Power | 335HP |
