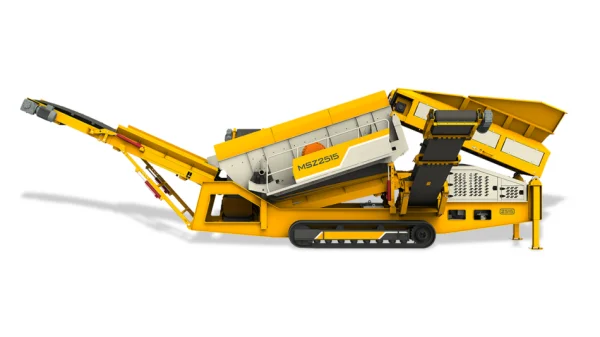

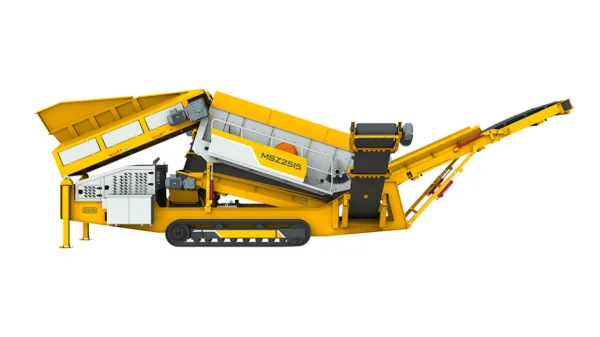

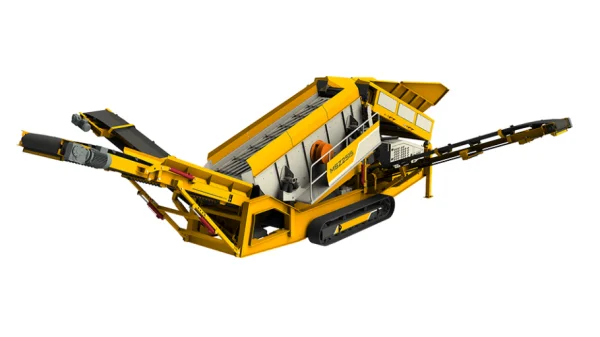

MSZ Heavy Duty Mobile Screener

MSZ series heavy duty mobile screener is a portable topsoil screener used to separate raw materials such as soil and rock. The screening capacity of this primary screener ranges from 280t/h to 680t/h. The feeding size can reach 500mm.


  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

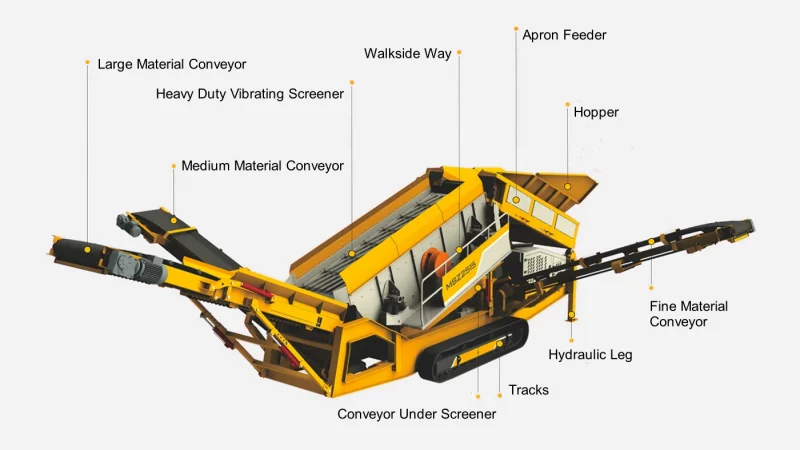

Our MSZ heavy mobile screener is not only a primary screener for aggregate processing but also a portable topsoil screen. And it consists of:

mobile primary screening for separating rock from dirt mud
mobile primary screening for separating rock from dirt mud

  • 1 hopper for storage g raw material, using Q355B plate steel structure and having strong impact resistance.
  • 1 apron feeder for feeding screener.
  • 1 heavy duty vibrating screening for separation of soil and rock. And it has grates installed above the sieve.
  • 5 belt conveyors for material classification，
  • Hydraylic driving tracks.
  • Walking Side Ways for Maintenance and Observation.
  • Steel Frame.
  • And more.

Advantages & Highlights

  • Large Processing Ability

    The screening capacity can reach 680tons/hour.

  • Large Lump Size

    The feeding size of bulk materials can reach 500mm.

  • High mobility

    Tracked mounted design structre and can easily move in site.

  • Durability

    Using robust steel to processing this vibrating screen.

  • High Stacking Ability

    The stacking height of discharing conveyor ranges from 3.2m to 3.9m

Application & Gallerys

Our MSZ mobile screening plant is mainly used in primary screening of raw material. You can use it to separate soil and rock. It is an excellent mobile soil screening plant.
  1. Mineral ore mining crushing,
  2. Construction waste screening,
  3. Gangue screening,
  4. Sand and gravel aggregate screening.
  5. Topsoil, Dirt, Soil, Mud, Compost.
  6. And more.
  • mobile screener for primary screening of raw materials
  • mobile screener for primary screening of raw materials
  • mobile screener for primary screening of raw materials

Technical Parameters

Models MSZ-2618 MSZ-2515E MSZ-2515
Hopper Feeder
Volume (m³) 6.5 6.5 6.5
Feeding Height (mm) 3642 3685 3685
Max. Lump Size (mm) 500 500 500
Feeding Capacity (t/h) 600 500 500
Vibrating Screener
Screen Layers 2 2 2
Length×Width(mm) 6000×1800 4800×1550 4800×1550
Belt Conveyor
Feeding Belt Width (mm) 1000 1000 1000
Conveyor Width Under Screen (mm) 1200 1200 1200
Conveyor Width for Large Size Material×Stacking Height (mm) 1200×3980 1200×3986 1200×3986
Conveyor Width for Medium Size Material×Stacking Height (mm) 800×3235 800×3244 800×3244
Conveyor Width for Fine Size Material×Stacking Height (mm) 800×3615 800×3609 800×3609
General Data
Total Power (kw) 74.5 70 67
Screening Capacity (t/h) 280-680 250-500 250-500
Walking Speed (km/h) 0.6-1 0.6-1 0.6-1
Total Weight (t) 40 33.5 32.5
Transportation Dimension L×W×H (mm) 18000×3500×3700 14794×3260×3622 14794×3260×3622
