Belt Conveyor Power Calculation: Comparing Required vs Available Power

Introduction

In belt conveyor design, one of the most critical checks is ensuring that therequired power(calculated from load and resistance) does not exceed theavailable power(provided by the motor and drive system). This balance determines whether the conveyor can operate reliably without overloading or stalling.

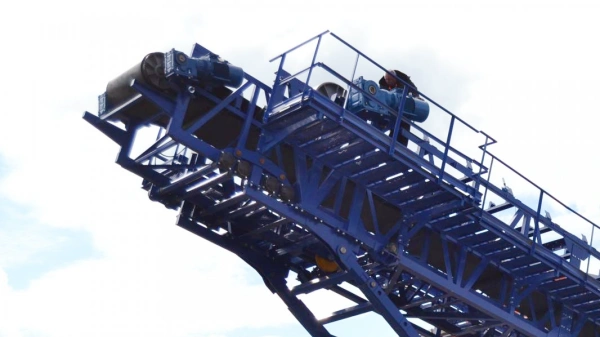

This is a radial telescopic conveyor for bulk material handling.

Required Power of Belt Conveyor

Therequired poweris derived from the effective tension needed to move the belt and material:

P_required=T_e×V

• Effective tension (Te) includes:
  • Frictional resistance
  • Material lift resistance
  • Belt weight resistance
  • Additional resistances (splices, pulleys, accessories)
• Belt speed (V) is the operating velocity in m/s or FPM.

Thus, the required power grows with higher belt speed, heavier loads, and longer conveying distances.

Available Power of Belt Conveyor

Theavailable powercomes from the motor and drive system:

P_available(f)=P_rated×(f/f_rated)

• Rated motor power (P_rated): maximum continuous output at rated frequency.
• Frequency factor (f/f_rated): when using a Variable Frequency Drive, available power scales with operating frequency.
• At reduced frequency, available power decreases linearly.
• At higher frequency, torque limits prevent exceeding rated power.

 Comparison of Required and Available Power

• Calculate required powerusing conveyor parameters.
• Determine available powerat the chosen operating frequency.
• Compare results:
  • If(P_required≤P_available)→ conveyor runs safely.
  • If(P_required>P_available)→ risk of overload, belt slip, or motor trip.

Case Study Example

Conveyor A

• Belt speed = 330 FPM
• Required power = 23.6 HP
• Motor rated = 25 HP
• ✅ Safe operation

Conveyor B:

• Belt speed = 165 FPM
• Required power = 20.3 HP
• Motor at 30 Hz = 12.5 HP available
• ❌ Insufficient power → drive failure
