Belt conveyor guide rollers are conveyor component designed to help guide and align the conveyor belt along its path. They play a crucial role in maintaining proper belt alignment, preventing belt mistracking, and minimizing potential damage to the conveyor system.

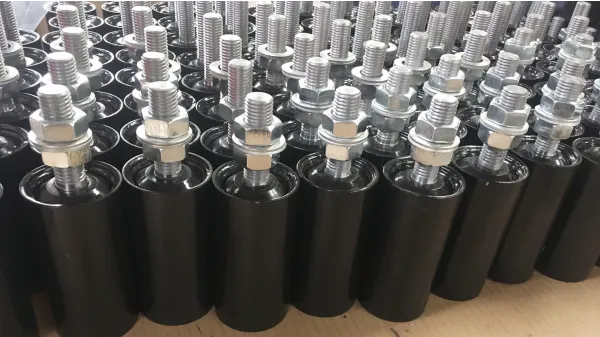

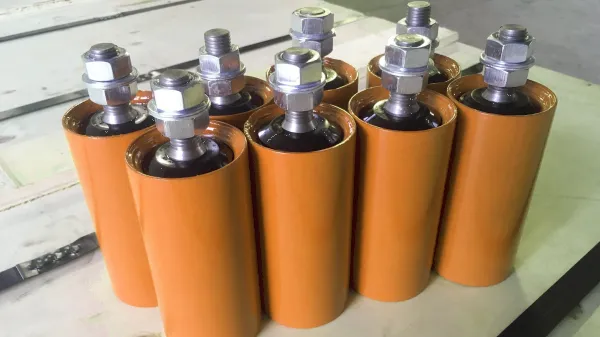

Guide rollers are designed with a cylindrical roller shell made of steel or other durable materials. The roller surface may be smooth or have a profiled shape to provide better belt contact and tracking performance. Some guide rollers feature tapered ends or angled side guides to help guide the belt back to its proper alignment. Guide rollers are typically positioned at strategic points along the conveyor system where belt tracking is critical, such as at transfer points, curves, and loading zones. They can be installed on the carrying side or the return side of the conveyor belt, depending on the specific requirements of the application.
As an important part of the self-aligning roller set, the guide roller can effectively prevent the belt from cutting the conveyor frame.
The guide rollers can be installed quickly via bolts, which simplify installation and allow adjustment.
Our guide rollers are suitable for conventional products currently on the market.
Guide rollers are used in various industries and applications where precise belt tracking is essential, including mining, quarrying, bulk materials handling, etc. They are particularly useful in conveyor systems with long belt spans, curves, inclines, or declines, where maintaining belt alignment is challenging.
| Guide Roller Dimension | |
| Roller Diameter | 60, 76, 89mm |
| Shaft Diameter | 20, 35, 40mm |
| Roller Length | Customized |
| Roller Materials | Steel, Stainless Steel, HDPE |
| Bearing | Ball Bearing 2RS & ZZ |
Just let we know what you want, and we will get in touch with you as soon as possible!
