Steel Conveyor Roller

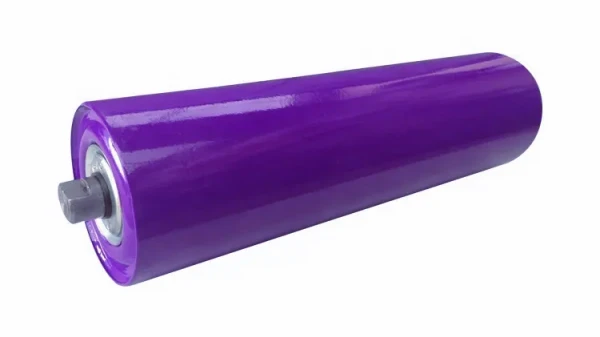

Steel conveyor rollers are an essential component of belt conveyor systems, providing support to the conveyor belt and facilitating smooth material transport. The conveyor steel roller can be made of galvanizing and stainless steel.

  • Product Introduce
  • Video
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

Steel Conveyor rollers are typically made of high-quality steel, such as carbon steel or stainless steel. Steel rollers offer excellent durability, strength, and resistance to wear and corrosion. Custom made rollers are available on request.

The Structure of Steel Rollers

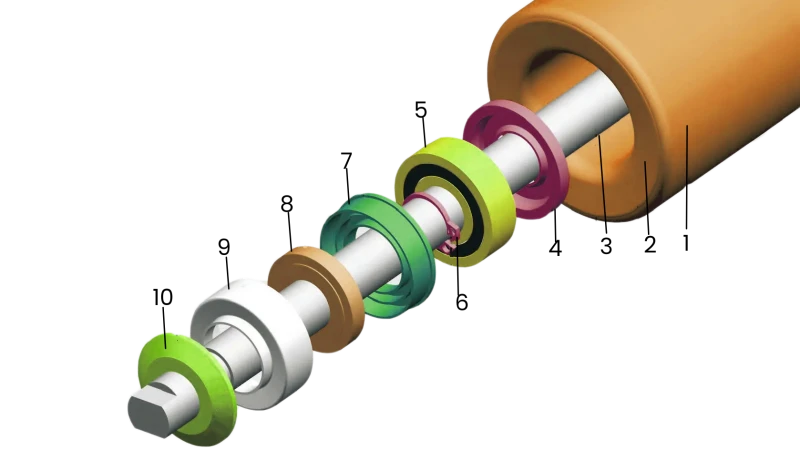

steel conveyor roller components

  • 1. Conveyor Steel Pipe
  • 2. Bearing House
  • 3. Roller Shaft
  • 4. Inner Lip Seal
  • 5. Bearing
  • 6. Circlip
  • 7. Female Labyrinth
  • 8. Male Labyrinth
  • 9. Dust Cover
  • 10. Protect Cover

The roller shell is the cylindrical part of the conveyor roller, usually made of steel tube or pipe. The diameter and wall thickness of the housing are designed to withstand the loads and stresses encountered during material handling operations. The steel conveyor rollers are equipped with bearings on both ends to help with smooth rotation. Bearings are usually mounted in bearing housings made of steel or other materials.

Main Components of Steel Rollers

1. Steel Pipe

Our conveyor rollers can be made of high quality steel pipe. Uniform wall thickness of steel pipe can ensure good dynamic balance of the conveyor rollers. The common steel pipes.

  • High precision longitudinal seam-welded steel pipe without welding rods.
  • seamless steel pipe (better material for steel conveyor rollers).
  • Stainless steel pipe.

seamless steel pipe and straight seam weld steel pipe
Seamless Steel Pipe and Straight Seam Weld Steel Pipe

2. Roller Shaft

The shaft of conveyor roller are made of cold-drawn round steel bar. High-precision diameter tolerances allow the rollers and bearings to fit perfectly. Use automatic CNC machine tools to cut and process the steel bar to ensure precise positioning of the circlip grooves. This allows the rollers to have very little axial movement.

cold-drawn round steel bar for shaft processing
Cold-drawn Round Steel Bar for Shaft Processing

3. Bearing House

The bearing house of conveyor rollers are made of high quality cold-rolled steel plate.

4. Bearings Options

A variety of brands are available, and you can decide on the brand of bearings used in your projects. Bearing tolerances meet class P5 (DIN 620).

  • SKF Bearing,
  • FAG Bearing,
  • NSK Bearing,
  • HRB Bearing,
  • LYC Bearing,

5. Labyrinth Seal System

The bearing's sealing system protects against water and dust and reduces noise. This system comprises of these seals listed below.

  • inner seal,
  • labyrinth seal,
  • galvanized metal dust cover,
  • protective cover.

Video

Play Now

Advantages & Highlights

  • Long Working Service Life

    Designed and manufactured for a long, trouble-free maintenance life.

  • High Quality Ball Bearings

    Bearings are typically sealed or shielded to protect against contaminants and reduce maintenance requirements.

  • Various of Materials for Option

    Conveyor steel rollers are typically made of high-quality steel, such as carbon steel or stainless steel.

  • Different forms of Usage

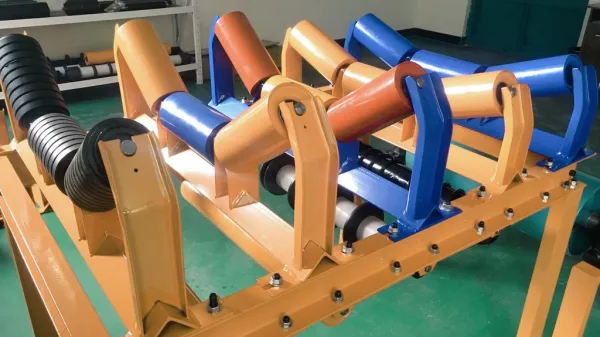

    Steel rollers are used in flat idlers, troughed idlers and self-align rollers to support conveyor belts.

Application & Gallerys

Steel conveyor rollers are used in a wide range of industries and applications, including mining, quarrying, construction, manufacturing, logistics, and distribution. They are suitable for conveying various materials, including bulk solids, aggregates, ores, coal, grains, and packaged goods.

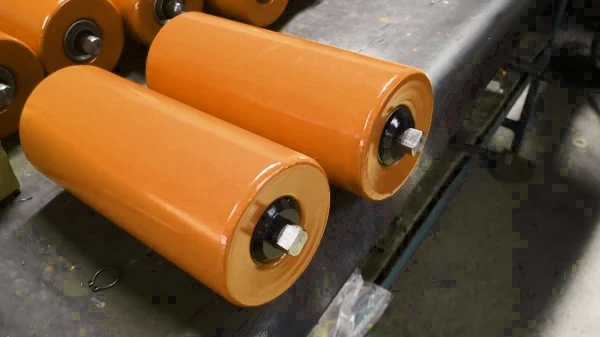

  • steel roller for belt conveyor

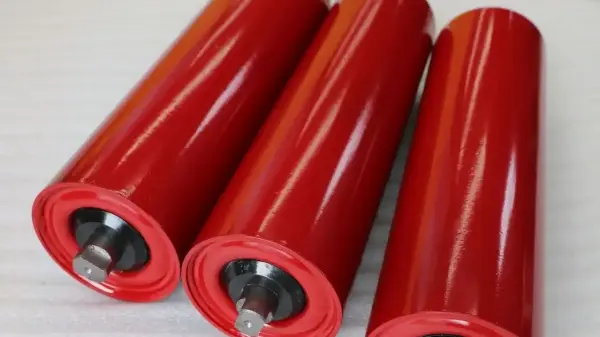

  • steel roller for belt conveyor

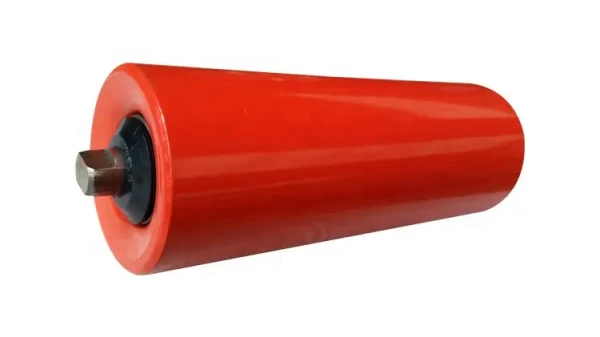

  • steel roller for belt conveyor

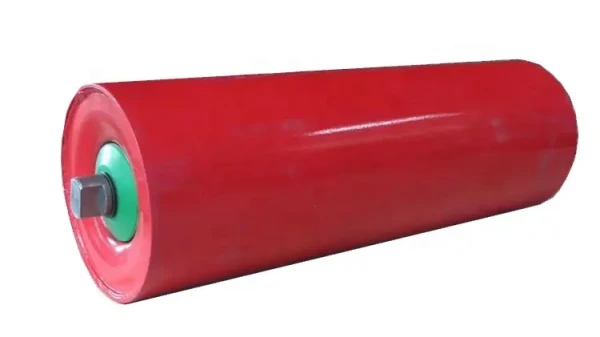

  • steel roller for belt conveyor
  • steel roller for belt conveyor
  • steel roller for belt conveyor

Technical Parameters

Steel Conveyor Idler Roller Dimension
Roller Dia. (mm) 63, 89, 108, 133, 159,194, 219
No-standard Roller Dia. (mm) 76, 102, 114, 127, 140, 152 ,168, 178
Roller Shell Thickness (mm) 3, 3.2, 3.5, 4, 4.5, 5.0, 6.0, 6.3
Roller Shaft Dia. (mm) 15, 20, 25, 30, 40
Roller Length (mm) 160-2800
Belt Width (mm) 400-2400
Bearings 6204, 6205, 6305, 6206, 6306, 6308
Material Carbon Steel, Stainless Steel
Standard DIN, CEMA, JIS, AS, SANS, GOST, AFNOR etc.
Read More Data
