Chain Bucket Ship Unloader

The chain bucket ship unloader utilizes a series of buckets attached to a continuous chain or belt to scoop and lift the material from the ship's hold, transporting it to a conveyor system or directly to storage. The unloading capacity can reach 3000t/h.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

Chain bucket ship unloaders are essential for efficient and rapid unloading of bulk materials in ports and industrial facilities. Their robust design and high capacity make them suitable for handling a wide range of materials, ensuring efficient cargo handling and reduced operational costs. Proper maintenance and operation are crucial for maximizing the performance and lifespan of these unloaders.

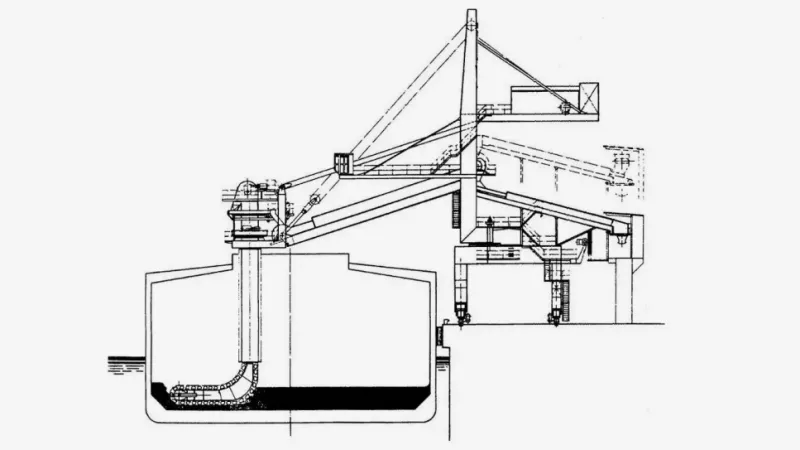

Chain Bucket Ship Unloader Drawing
Chain Bucket Ship Unloader Drawing

Components of Chain Bucket Ship Unloader

  • Buckets: Attached to chains or belts, these scoop up and carry the material. Buckets are made from durable materials to handle abrasive bulk cargo.
  • Chain or Belt: Supports the buckets and provides the mechanism for lifting and transporting material.
  • Boom: The arm of the unloader that extends over the ship's hold. The boom can often be adjusted for different ship sizes and unloading positions.
  • Support Structure: Includes the frame and supporting mechanisms that provide stability and support for the unloader.
  • Drive System: Powers the movement of the chain or belt and controls the lifting and lowering of the buckets.
  • Discharge Mechanism: Transfers the material from the buckets to the conveyor system or directly to storage.

Advantages & Highlights

  • Efficient Handling

    Our chain bucket ship unloaders can handle large quantities of material quickly, improving turnaround times for ships and increasing terminal throughput.

  • Reduced Labor Costs

    Automation chain bucket ship unloader reduces the need for manual labor, lowering operational costs.

  • Improved Safety

    Minimizes the risk of accidents and injuries associated with manual unloading methods.

  • Environmental Benefits

    Modern unloaders can be equipped with dust control systems to minimize environmental impact

  • High Efficiency

    Capable of handling large volumes of material quickly, significantly reducing unloading times.

  • Continuous Operation

    Provides a continuous flow of material, which can enhance overall terminal efficiency.

Application & Gallerys

  • Ports and Terminals: Unloading bulk cargo such as coal, iron ore, grain, cement, and fertilizers from ships.
  • Power Plants: Handling coal and other fuels delivered by ship.
  • Steel Mills: Unloading raw materials like iron ore and coal.
  • Cement Plants: Handling bulk cement and other materials.

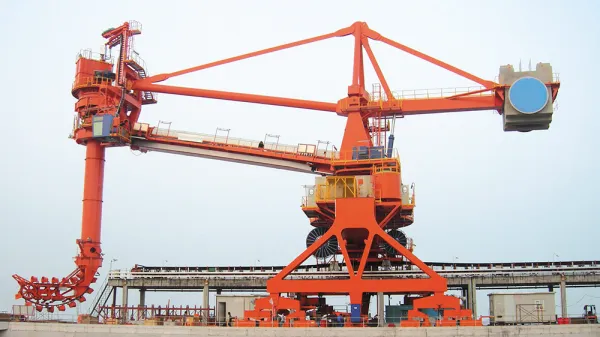

  • chain bucket ship unloader

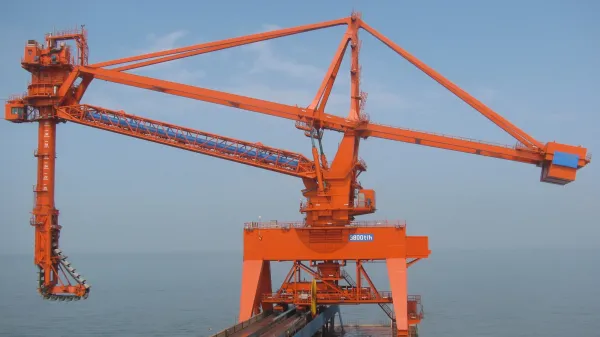

  • chain bucket ship unloader

Technical Parameters

Equipment Model
Model CBSU400 CBSU600 CBSU800 CBSU1000 CBSU1500 CBSU1800 CBSU2000 CBSU3000
Capacity (t/h) 400 600 800 1000 1500 1800 2000 3000
Materials Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials.
Density (t/m³) 0.5-2.5
Particle Size (mm) 0-300

Traveling Speed (m/min) 0.1-20
Hoisting chain bucket
Rotating speed (r/min) 0-0.45
Chain speed (m/s) 0.2-1.65
Cantilever crane
Rotating angle (°) ±90
Rotating radius (m) 20-50
Rotating speed (r/min) 0.-0.09
Pitching angle (°) 38～-18
Rail gauge (m) 12.5 15 16 20 22 25 25 30
Other Options
Maximum wheel load (KN) 300-500
Recommended steel track Q80/Q100
Power supply mode Cable drum/safety sliding contact line
Contact mode Cable drum/safety sliding contact line/wireless
Control mode PLC program control, manual and single action
