Carrying Idler

A carrying idler is a type of conveyor idler designed to support the loaded portion of a conveyor belt and facilitate the efficient transportation of materials. We can offer troughing idlers and flat idlers for belt conveyors.

  • Product Introduce
  • Video
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

Carrying idlers typically have a troughed shape to form a troughed profile on the conveyor belt, which helps contain and guide the material being conveyed. The roller surface may be smooth or have a rubber coating to reduce friction and wear on the conveyor belt. The carrying idlers come in various types, such as:

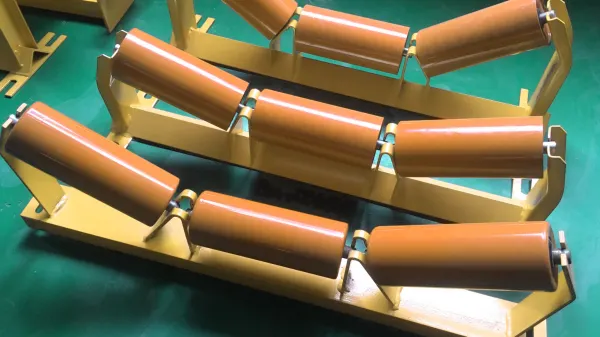

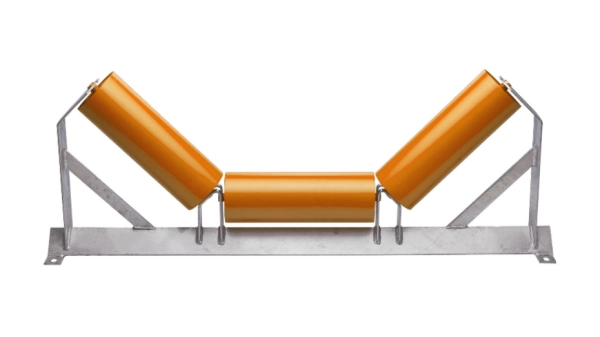

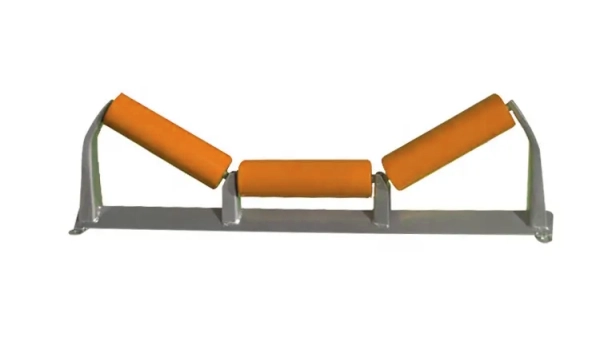

  • 3 rollers troughed carrying idler,
  • 2 rollers v-type carrying idler,

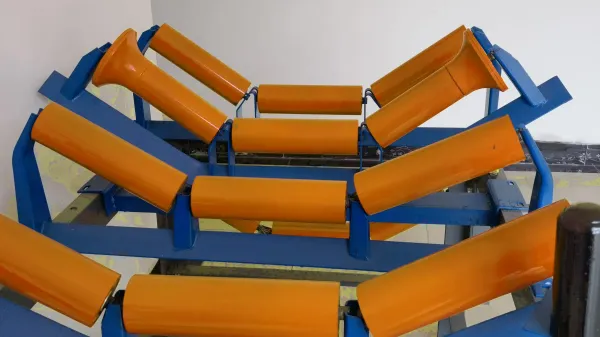

  • garland idler,
  • flat carrying idler.

Video

Play Now

Advantages & Highlights

  •
    Long Working Service Life

    Designed and manufactured for a long, trouble-free maintenance life.

  •
    High Quality Ball Bearings

    High-quality sealed ball bearing rolls for providing smooth rotation.

  •
    Vairous Types for Option

    We can provide troughed carrying idlers and flat carrying idlers.

Application & Gallerys

Carrying idlers support the loaded portion of the conveyor belt and help maintain its proper alignment. They distribute the weight of the conveyed material evenly across the belt width.

  • Carrying idlers are used in various industries for bulk material handling, including mining, quarrying, construction, agriculture, and manufacturing.
  • They are suitable for conveying a wide range of materials, including ores, aggregates, coal, grains, and bulk solids.
  • carrying idler for belt conveyor
  • carrying idler for belt conveyor
  • carrying idler for belt conveyor
  • carrying idler for belt conveyor
  • carrying idler for belt conveyor

Technical Parameters

Carrying Idler Dimensions
Types Belt Width Roller Length Roller Diameter Rollers
Flat Carrying Idler 400-2400 500-2800 63.5-219 1 roller or 2 rollers
V-return Carrying Idler 800-2400 465-1400 89-219 2 rollers
Self aligning carrying idler 400-2400 500-2800 63.5-219 3 rollers and 2 guide rollers
Troughed Carrying Idler 400-2400 160-900 63.5-219 2 rollers or 3 rollers
Troughed Impact Carrying Idler 400-2400 160-900 89-219 3 rollers
