Self-Align Idler: Belt Training Idler

A self-aligning idler, also known as a training idler, is a conveyor idler designed to automatically correct and maintain the alignment of a conveyor belt. We provide trough-shaped self-aligning idlers and flat self-aligning idlers for belt conveyors.

  • Product Introduce
  • Video
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

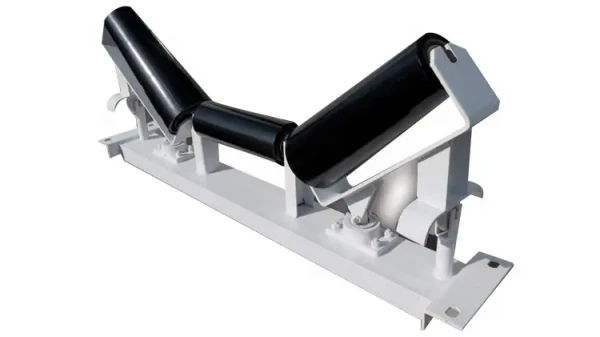

A normal self-aligning idler consist of three normal rollers and two guide rollers or one normal roller and two guide rollers. These self-align idler often use the guide roller to prevent misaligning of conveyor belt. We also provide special self-align idlers with special rollers like tapered rollers and friction rollers.

Video

Play Now

Advantages & Highlights

  •
    Long Working Service Life

    Designed and manufactured for a long, trouble-free maintenance life.

  •
    High Quality Ball Bearings

    High-quality sealed ball bearing rolls for providing smooth rotation.

  •
    Vairous Types for Option

    We can provide flat troughed self-align idlers and flat self-align return idlers.

Application & Gallerys

Self-aligning idlers contribute significantly to the efficiency and reliability of conveyor systems by automatically correcting belt misalignment, reducing the risk of damage to the belt and other components.

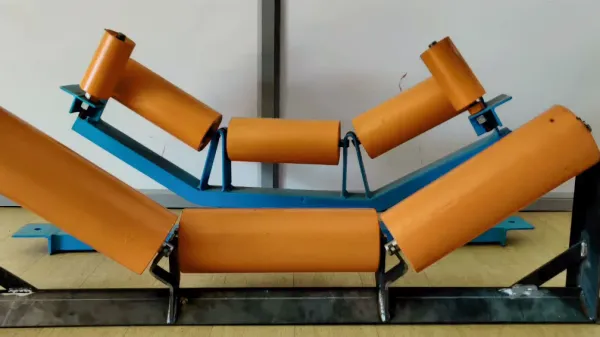

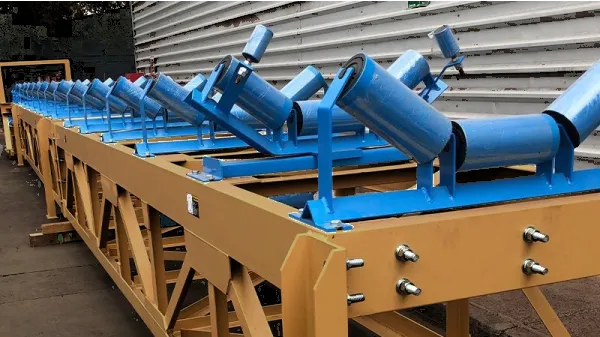

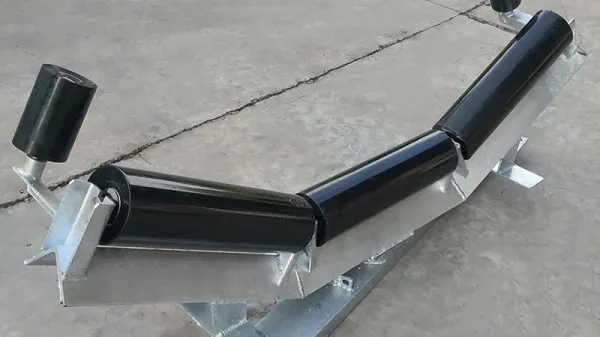

  • self-align idler for belt conveyor
  • self-align idler for belt conveyor
  • self-align idler for belt conveyor

Technical Parameters

Self-aligning Idler Dimensions
Types Belt Width Roller Length Roller Diameter Rollers
Self-aligning Troughed Idler 400-2400 160-900 63.5-219 3 rollers
Friction Self-aligning Idler 400-1400 160-1638 63.5-159 2 friction rollers and 1 flat roller
Tapered Self-aligning Idler 800-2000 250-1080 108-159 2 tapered rollers and 1 flat roller

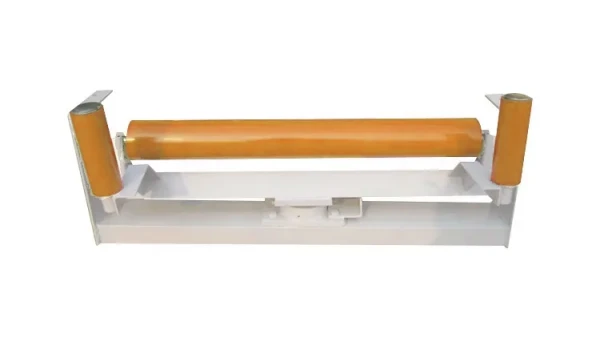

Return Training Idler 400-2400 500-2800 63.5-219 1 roller or 2 guide rollers
