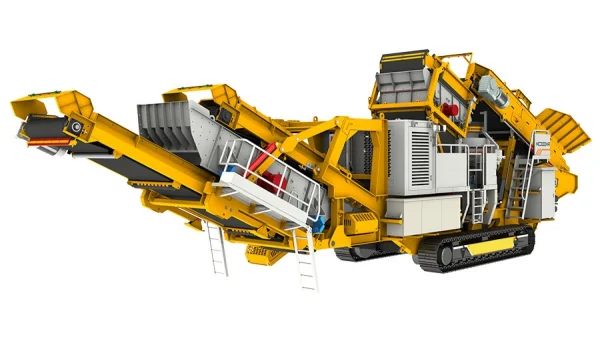

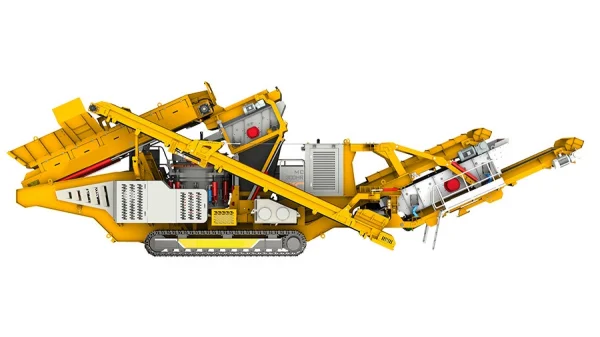

MC Series Mobile Cone Crusher

MC series mobile cone crusher is a compact mobile cone crushing plant and it is specially suitable for hard rock crushing. The crushing capacity ranges from 150 to 495 t/h. The feeding size can reach 225 mm.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

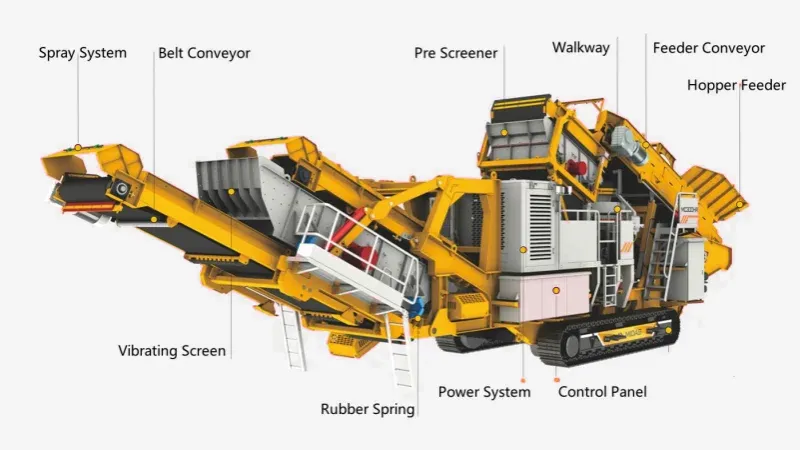

A mobile cone crusher is a portable crushing plant that uses a cone crusher as its primary component to break down rocks and materials into smaller, more refined sizes. We are a mobile cone crusher manufacturer. Our MC series mobile cone crusher plant is a hard stone portable crushing machines. It is often arranged in the secondary and tertiary stage of a crushing and screening plant. It mainly consists of:

mobile cone crusher for secondary and tertiary crushing

  • Large hopper for receiving crushed rocks from pre crushers.
  • Belt feeder for continuous conveying.
  • Power system can use diesel engine or external electric.
  • Dust cover for environment protecting.
  • Spray system for dust controlling.
  • Walkway and ladder for maintenance.
  • Belt conveyors for discharging and stockpiling.
  • PLC control system.
  • Tracks for easily moving.

Advantages & Highlights

  • Large Feeding Size

    The maximum lump size can reach 225mm.

  • Large Ouput Size

    The output size can reach 54mm.

  • Large Capactity

    The primary crushing capacity can reach 495t/h.

  • Suitable for a Wide Range of Materials

    MC mobile cone crusher can crush rocks from soft to hards.

  • Durable Structure

    QB355 steel plate for hopper and sturdy structure for frame.

Application & Gallerys

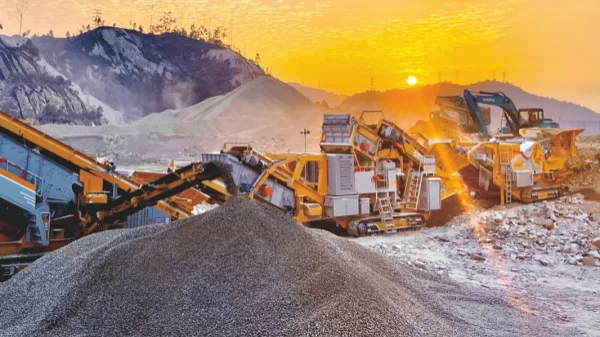

Mobile cone crushers are particularly effective in processing hard, abrasive materials. MC series mobile cone crusher is arranged in the secondary and tertiary crushing stages to process materials from medium to high hardness materials, such as:

  • Construction river pebbles, granite, and diabase crushing in quarries,
  • Mining ore crushing of iron ore before ball milling.
  • mobile stone crushing plant for quarrying and mining crushing
  • mobile stone crushing plant for quarrying and mining crushing
  • mobile stone crushing plant for quarrying and mining crushing
  • mobile stone crushing plant for quarrying and mining crushing

Technical Parameters

Models MC-300S MC-300SR MC-300H MC-300HRE MC-300HR
Hopper Feeder
Volume (m³) 6.5 6.5 6.5 6.5 6.5
Feeding Height (mm) 2870 2870 2870 2870 2870
Feeding Size (mm) 225 225 225 225 225
Feeding Capacity (t/h) 500 500 500 500 500
Cone Crusher
Crusher Cylinder type Single Single Multiple Multiple Multiple
Vibrating Screen L×W (mm) / 1540×3600 / 1540×3600 1540×3600
Screen Layers / 1 / 1 1
Output Size (mm) 25-54 25-54 10-45 10-45 10-45
Belt Conveyor
Main Conveyor Belt Width (mm) 1200 1200 1200 1200 1200
Transfer Conveyor Belt Width (mm) 500 500 500 500 500
Revert Conveyor Belt Width (mm) 500 500 500 500 500
Final Conveyor Belt Width (mm) 1200 1200 1200 1200 1200
Final Conveyor Stacking Height (mm) 3419 3419 3419 3419 3419
General Data
Total Power (kw) 308.7 338.7 308.7 338.7 338.7
Main Power (kw) 250 250 250 250 250
Crushing Capacity (t/h) 290-495 290-495 150-430 150-430 150-430
Walking Speed (km/h) 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1
Total Weigth (t) 52 57 55 64 60
Transportation Dimesnion L×W×H (mm) 13850×3200×3800 18357×3300×3800 14850×3200×3800 19247×3070×3731 19247×3070×3731
