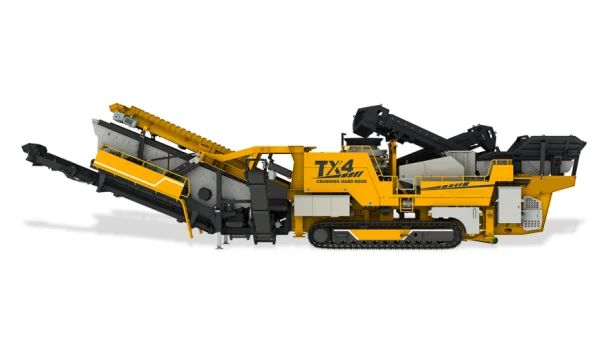

MJC Mobile Jaw + Cone Crushing Plant

MJC mobile jaw and cone crushing plant integrates vibrating feeder, jaw crusher, multi-cylinder hydraulic cone crusher, and vibrating screen in one set. The crushing capacity ranges from 200 t/h to 400 t/h.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

A mobile jaw and cone crushing plant is a portable stone crushing solution that integrates a jaw crusher and a cone crusher into a single unit. The jaw crusher is responsible for primary crushing, while the cone crusher handles secondary crushing, refining the materials into finer aggregates. We are mobile stone crushing plant manufacturer. Our MJC mobile crushing plant is a high compact mobile crushing and screening plant. This tracked portable stone crushing and screening plant is suitable for high hard rock crushing. It consists of:

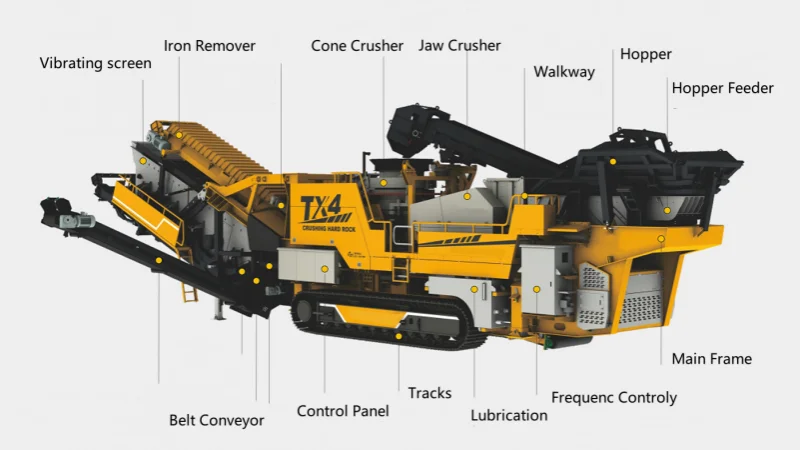

mobile jaw and cone crushing plant

  • Vibrating feeder with grates for primary screening。
  • Hopper fore temporary storage of materials.
  • Jaw crusher for primary crushing.
  • Cone crusher for secondary crushing.
  • Iron remover for iron removing.
  • Belt conveyors for transferring and stacking.
  • Power system for machine driving.
  • Control panel
  • Lubrication.
  • Main frame for supporting.

Advantages & Highlights

  • High compact design

    It integrates jaw crusher and cone crusher in one set for realizing primary and secondary crushing.

  • High crushing efficiency

    This compact mobile stone crusing can crushing rocks at capacity of 200-400 t/h.

  • Suits for High Hard Rock

    It can crush highly wear-resistant stones with SiO₂ content higher than 75%.

  • High mobility

    All crushing stages are integrated in one frame. You can put it anywhere you want to fast.

Application & Gallerys

  • Secondary and tertiary crushing and screening of medium and high hardness stone.
  • Crushing highly wear-resistant stones (SiO₂ content higher than 75%) such as river pebbles, granite, diabase, etc. in quarries.
  • Crushing of iron ore before ball milling in large-scale ore dressing plants.

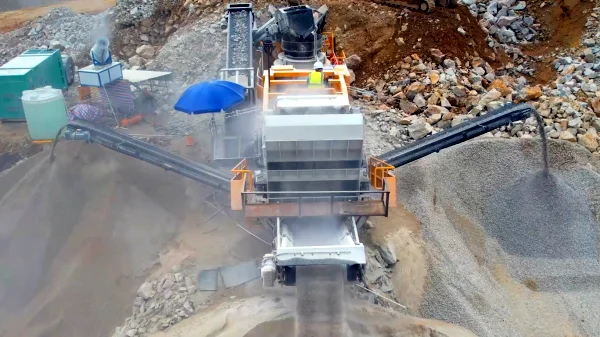

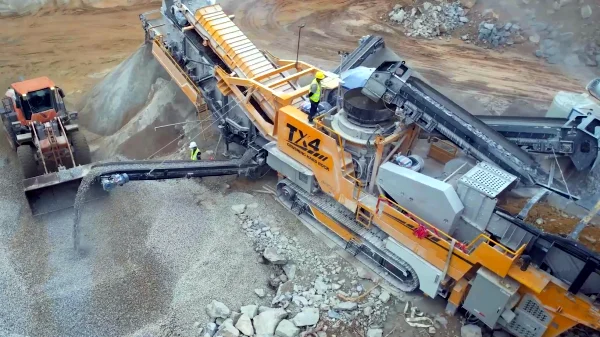

  • mobile jaw and cone crushing plant for hard rock crushing
  • mobile jaw and cone crushing plant for hard rock crushing
  • mobile jaw and cone crushing plant for hard rock crushing
  • mobile jaw and cone crushing plant for hard rock crushing

Technical Parameters

Model TX4
Feeder
Feeding Heigth (mm) 4100
Feeder W×L (mm) 1100×3737
Power (kw) 2×3.7kw
Return Vibrating Screen (Two Section)
Deck Layers 3
Vibrating Screen W×L (mm) 2000×2500/2000×3500
Power (kw) 4×6kw
Belt Conveyor
Main Belt Coveyor W×L(mm) 1200×15500
Side Belt Conveyor W×L(mm) 500×6125
Conveyor Under Screen W×L (mm) 1200×7570
Return Conveyor 1 W×L(mm) 1000×9760
Return Conveyor 2 W×L(mm) 1000×6260
General Data
Total Power (kw) 452
Crushing Capacity (t/h) 200-400
Walking Speed (km/h) 0.6-1
Total Weight (t) 115
Transportation Dimension L×W×H(mm) 20700×5100×4000
