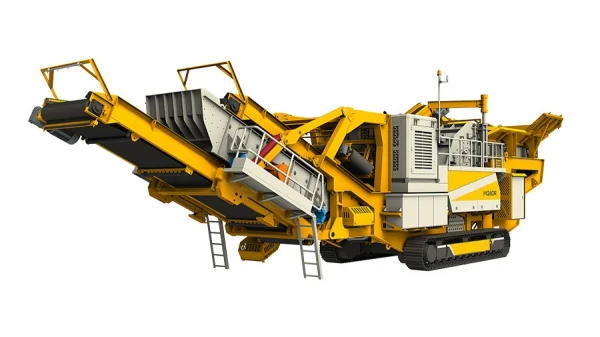

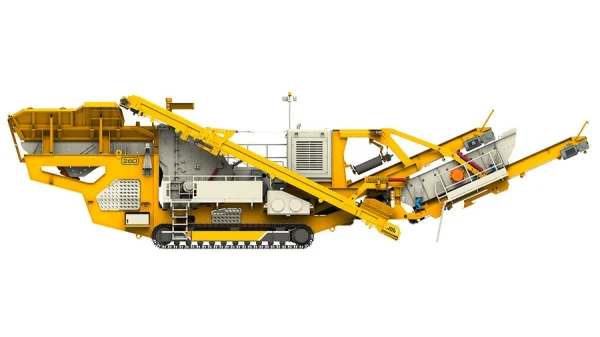

MI Series Mobile Impact Crusher

MI series mobile impact crusher is a compact portable impact crushing plant. It is often used as a primary and secondary crusher in construction waste recycling. The crushing capacity can reach 600 t/h. The feeding size can reach 800mm.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

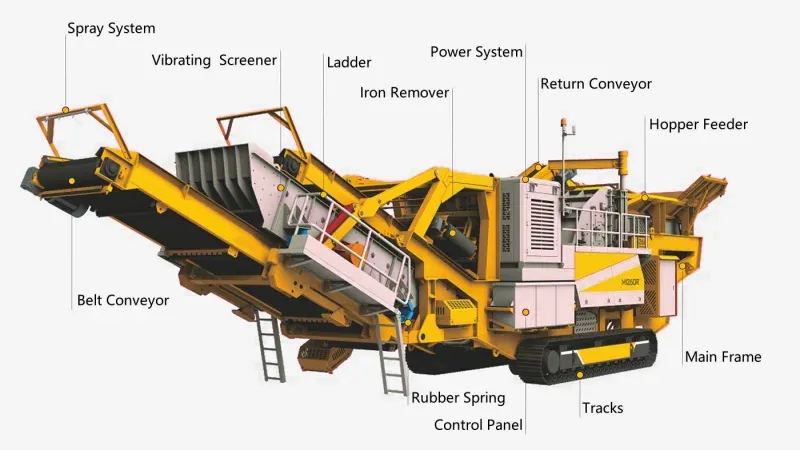

A mobile impact crusher is a portable stone crushing plant that uses an impact crusher as its main component to crush rocks, construction debris, and other materials. We are a mobile impact crusher manufacturer, and our impact crushers are designed to move easily to different locations and are particularly effective at handling softer, more friable materials like concrete, asphalt, and limestone. MI series mobile impact crusher plant is a soft and medium hard stone portable crushing machines. It is often arranged in the secondary stage of a crushing and screening plant. It mainly consists of:

mobile impact crusher for primary and secondary crushing

  • Large hopper (Q355B) for receiving rocks from a wheel loader or an excavator or pre-crushers.
  • Vibrating feeder for large rock conveying.
  • Power system can use diesel engine or external electric.
  • Iron remover for iron removing.
  • Dust cover for environment protecting.
  • Spray system for dust controlling.
  • Walkway and ladder for maintenance.
  • Belt conveyors.
  • PLC control system.
  • Tracks for easily moving.

Advantages & Highlights

  • Large Feeding Size

    The maximum lump size can reach 800mm.

  • Large Ouput Size

    The output size can reach 100mm.

  • Large Capactity

    The primary crushing capacity can reach 600t/h.

  • Suitable for a Wide Range of Materials

    MJ mobile impact crusher can crush medium and soft hard rocks.

  • Durable Structure

    QB355 steel plate for hopper and sturdy structure for frame.

Application & Gallerys

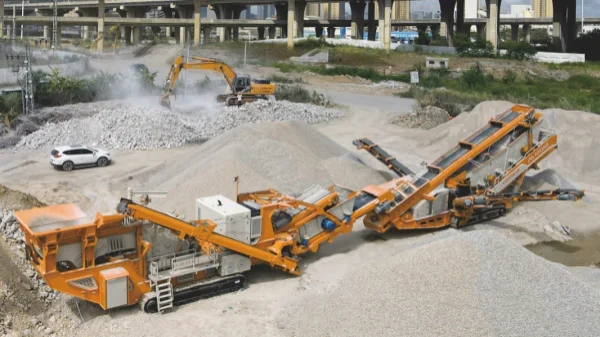

MI series mobile impact crusher is often working as primary and secondary crusher in a mobile crushing and screening plant for industies like quarrying and construction waste recycling. It also It has wide range of applications.

  • Construction Waste Recycling
  • Limestone Crushing
  • Coal Crushing
  • mobile stone crushing plant for soft and medium hard rock crushing
  • mobile stone crushing plant for soft and medium hard rock crushing
  • mobile stone crushing plant for soft and medium hard rock crushing
  • mobile stone crushing plant for soft and medium hard rock crushing

Technical Parameters

Models MI-150R MI-260R MI-350RE MI-350R MI-550
Hopper Feeder
Volume (m³) 4 7 7 7 9
Feeding Height (mm) 4200 4250 4250 4250 4500
Feeding Size (mm) 550 600 600 600 800
Feeding Capacity (t/h) 200 300 400 ​400 600
Impact Crusher
Crusher Models MIX MIX2 MIX3 MIX3 MIX4
Vibrating Screen L×W (mm) 3700×1200 3600×1540 5000×1740 5000×1740 /
Screen Deck Layers 1 1 1 1 /
Output Size (mm) 25-100 25-100 25-100 25-100 25-100
Belt Conveyor
Main Conveyor Belt Width (mm) 1000 1200 1200 1200 1200
Transfer Conveyor Belt Width (mm) 500 500 500 500 500
Revert Conveyor Belt Width (mm) 500 500 500 500 500
Final Conveyor Belt Width (mm) 1000 1200 1200 1200 1200
Final Conveyor Stacking Height (mm) 3200 3471 3449 3449 3200
General Data
Total Power (kw) 217.2 265.6 347.2 347.2 415.7
Main Power (kw) 160 200 280 280 375
Crushing Capacity (t/h) 100-200 160-350 250-500 250-500 400-600
Walking Speed (km/h) 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1
Total Weigth (t) 48 55 65 61 80
Transportation Dimesnion L×W×H (mm) 16600×3200×3800 18127×3626×3909 18882×3505×3872 18882×3505×3872 19600×3380×3800
