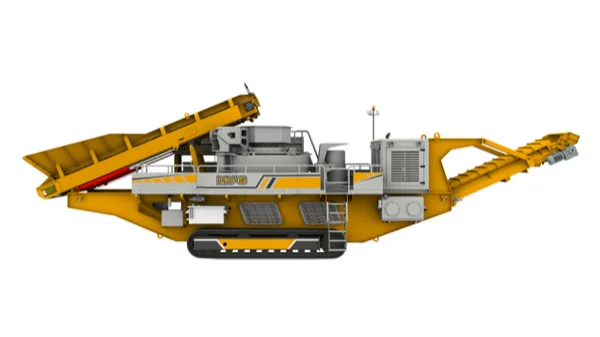

MVS Series Mobile Sand Crusher

MVS series mobile sand crusher is a compact portable vsi crusher for artificial sand manufacturing. It is arrange in the final crushing stage of a mobile crushing plant. The production capacity can reach 500 t/h. The feeding size can reach 100 mm.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

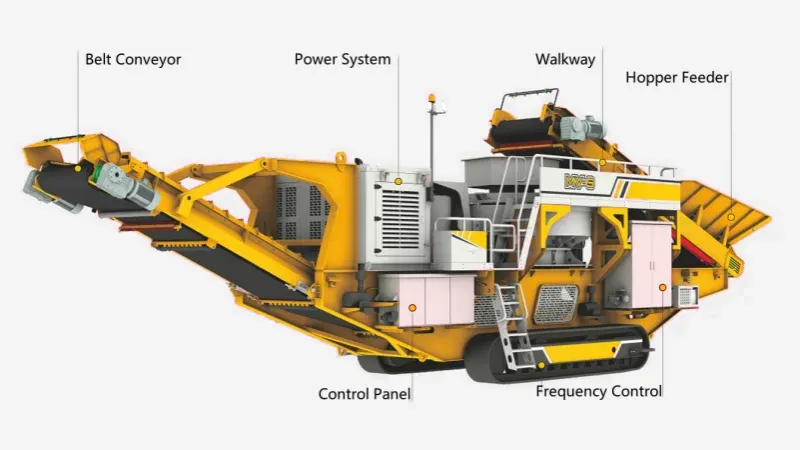

A mobile sand crusher is a portable crushing plant specifically designed to produce sand from stone. We are a mobile sand crusher manufacturer. Our portable sand crushers are equipped with VSI crusher to break down these materials into fine particles, creating sand that meets specific size and shape requirements. MVS series mobile sand crusher plant is a portable VSI sand crushing machines. It is often arranged in the final crushing stage of a crushing and screening plant. It mainly consists of:

mobile sand making machine

  • Large hopper for receiving crushed rocks from pre crushers.
  • Belt feeder for continuous conveying.
  • Power system can use diesel engine or external electric.
  • Dust cover for environment protecting.
  • Walkway and ladder for maintenance.
  • Belt conveyors for discharging and stockpiling.
  • PLC control system.
  • Tracks for easily moving.

Advantages & Highlights

  • Large Feeding Size

    The maximum lump size can reach 100mm.

  • Good Shape Sand

    Good crushing particle size, suitable for various engineering needs.

  • Large Capactity

    The primary crushing capacity can reach 500t/h.

  • Suitable for a Wide Range of Materials

    MVS mobile sand crusher can crush rocks from soft to hards.

  • Durable Structure

    QB355 steel plate for hopper and sturdy structure for frame.

Application & Gallerys

Our equipment is mainly used to obtain sand and gravel aggregates with better particle size. It suits for processing materials such limestone, granite, basalt, river stone and tailings.

  • Sand shaping
  • Artifical sand making

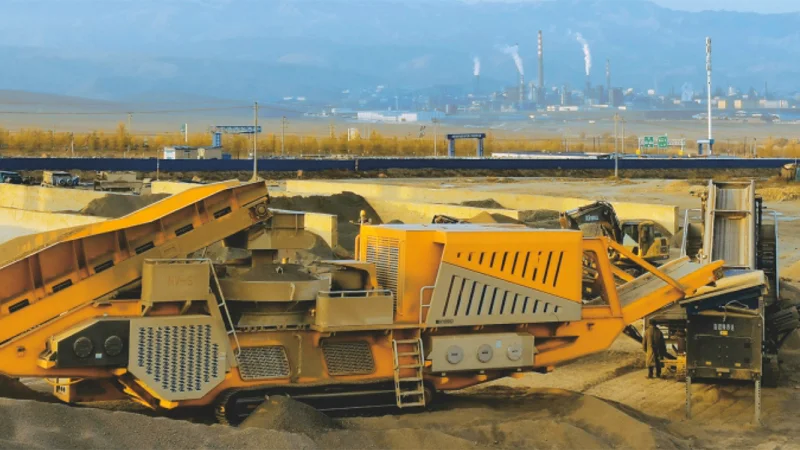

  • mobile sand crusher for sand making
  • mobile sand crusher for sand making
  • mobile sand crusher for sand making

Technical Parameters

Models MV-S MV-SE
Hopper Feeder
Volume (m³) 5 5
Feeding Height (mm) 2700 2700
Feeding Size (mm) 100 100
Feeding Capacity (t/h) 500 500
VSI Crusher
Rotor Diameter (mm) 1222 1222
Rotor thickness(mm) 220 220
Main Power (kw) 400 400
Belt Conveyor
Main Belt Width(mm) 1200 1200
Feeding Belt Width (mm) 1200 1200
Final Belt Width(mm) 3363 3363
General
Total Power (kw) 434 434
Crushing Capacity (t/h) 100-500 100-500
Waling Speed (km/h) 0.6-1 0.6-1
Total Weight (t) 45 55
Transportion Dimension L×W×H(mm) 17588×3545×3868 20542×3299×3976
